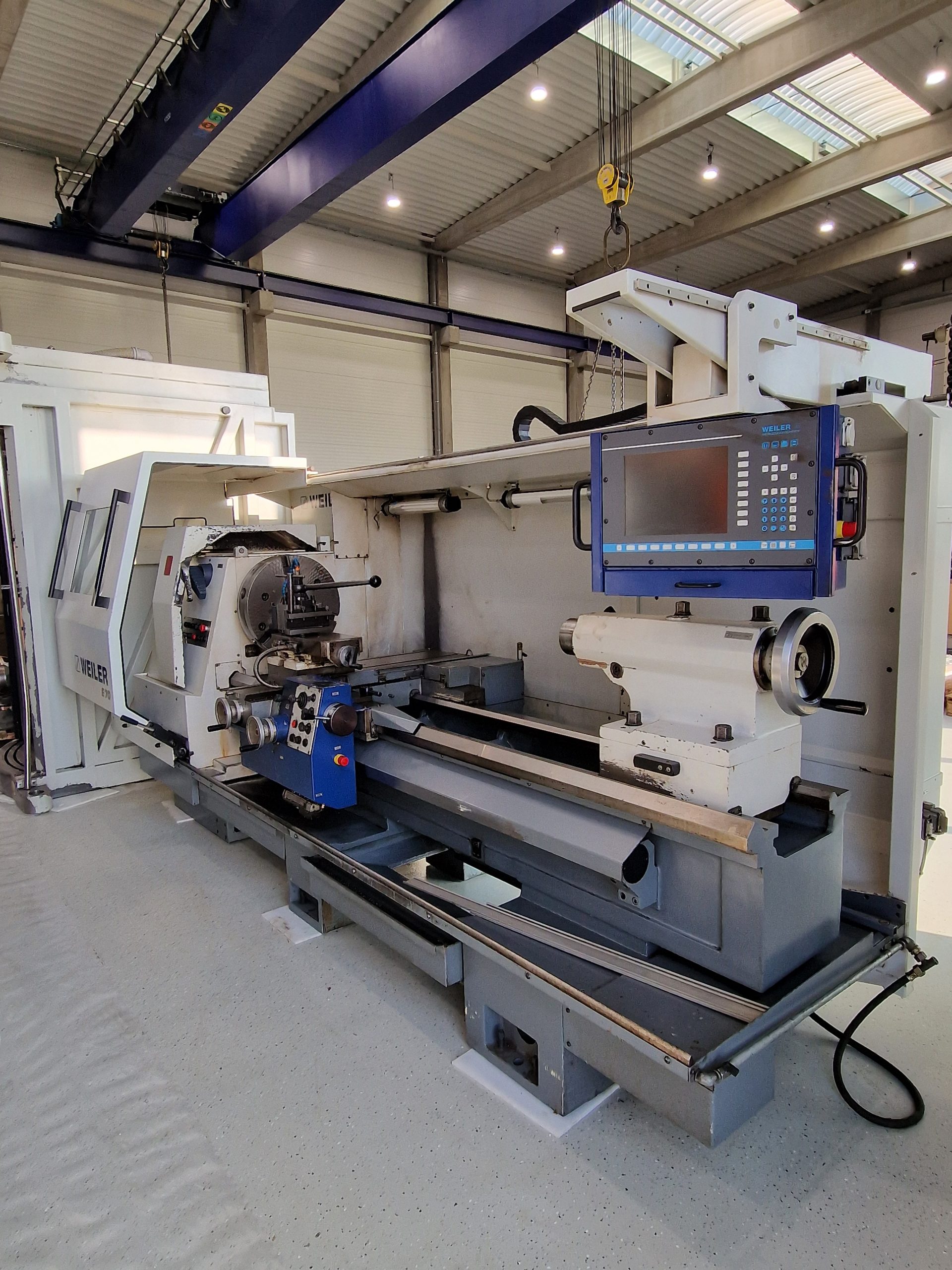

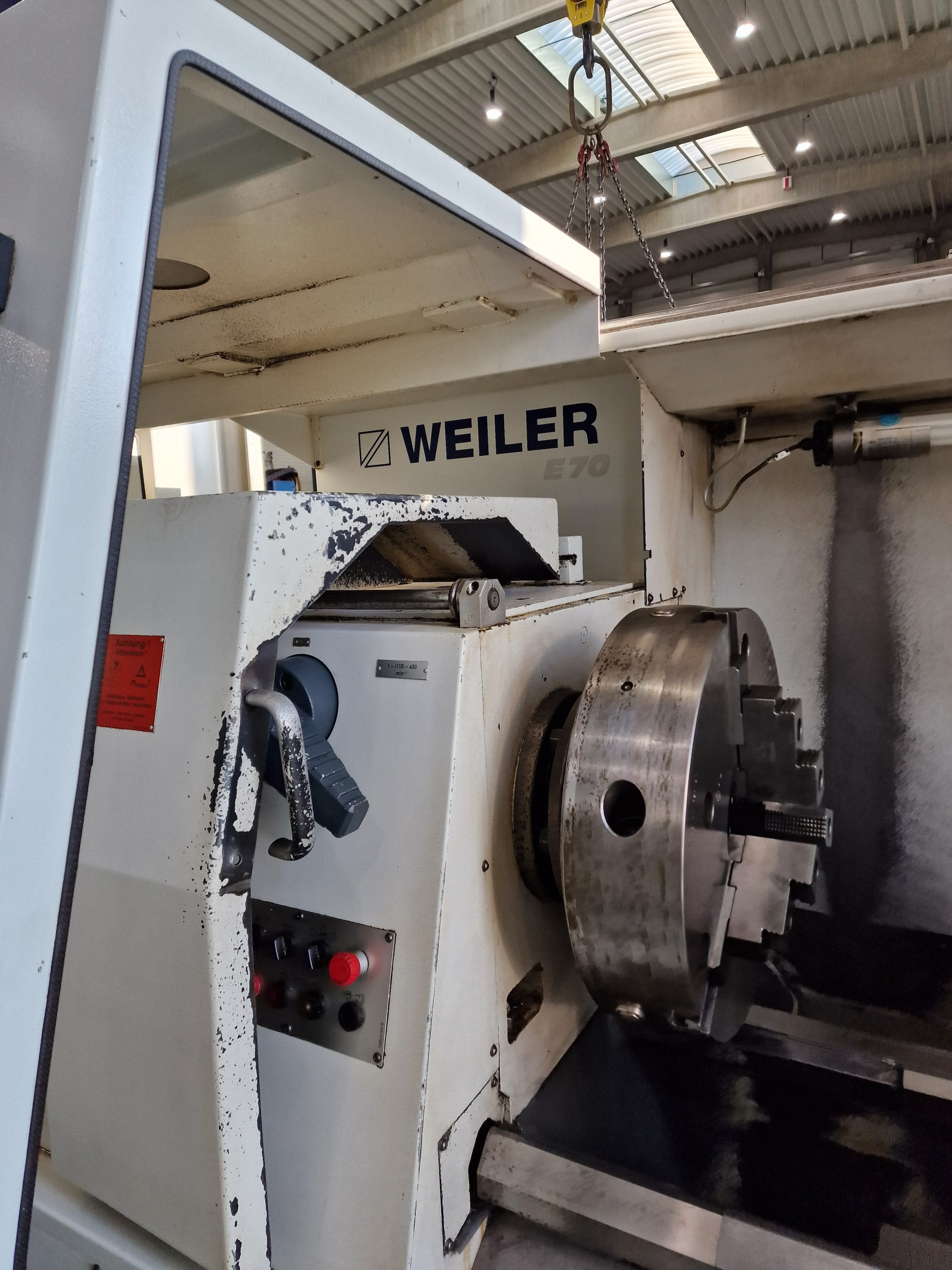

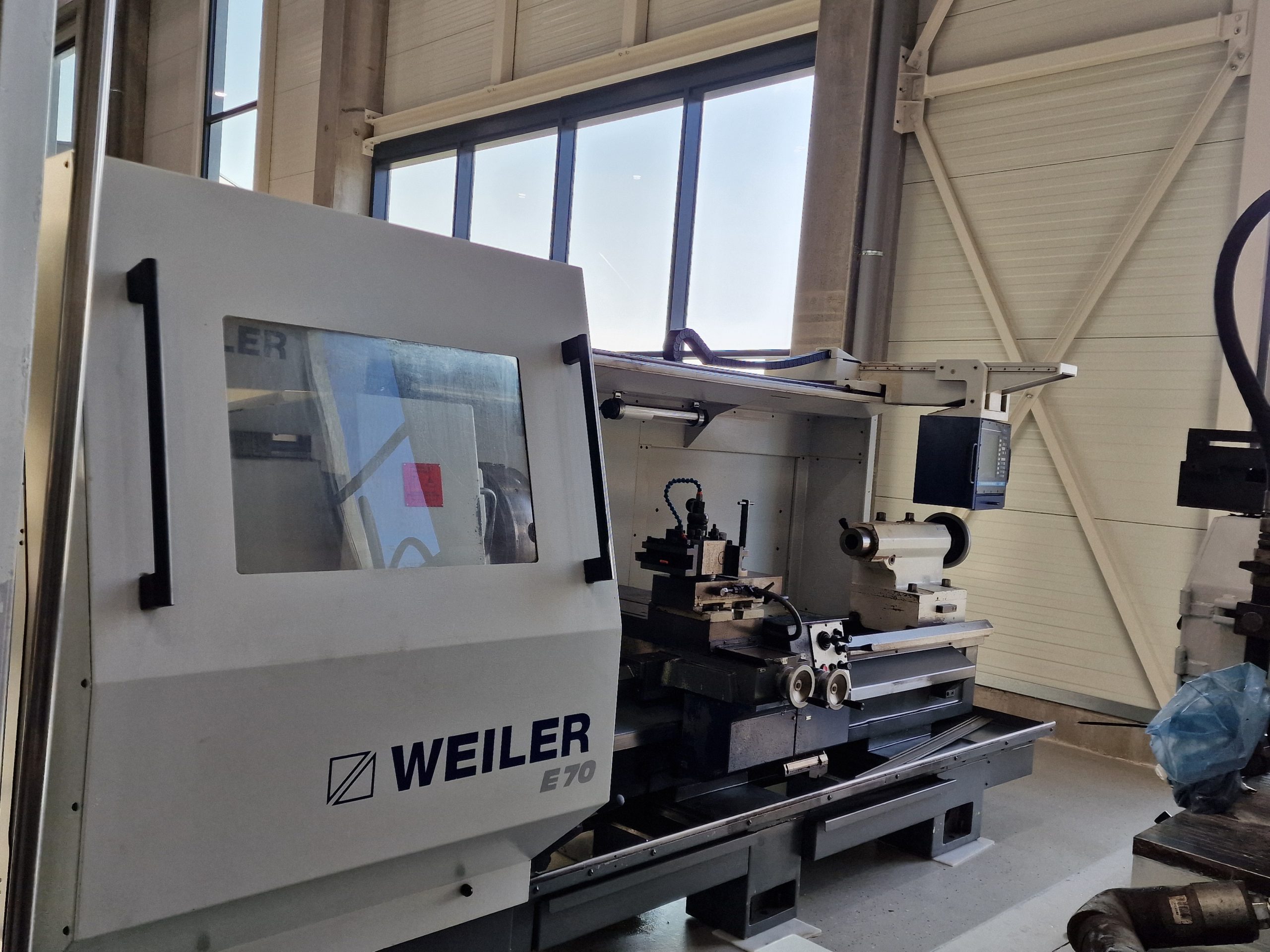

Turning machine-Weiler E70

Main drive:
Drive power	37,5 kW

Feed drive:
Feed range longitudinal and planar	0-5 mm/U
Feed force longitudinal	20000 N
Feed force plan	10000 N
Rapid traverse speed longitudinal/plane	10/5 m/min

Tailstock:
Quill diameter	115 mm
Quill stroke	225 mm
Inner taper of quill	6 MK

Working range:
Center width	2000 mm
Center height	320 mm
Swing diameter over bed	720 mm
Swing diameter over cross slide	430 mm
Bed width	480 mm
Displacement of the cross slide	410 mm
Movement of the top slide	140 mm
Face slide length	830 mm
Face slide width	260 mm
Bed slide guide length	735 mm
Turning tool cross-section	32/25 mm

Machine dimensions
Overall length	4050 mm
total width	2360 mm
total height	1950 mm


Technical details and specifications are subject to change without notice.
