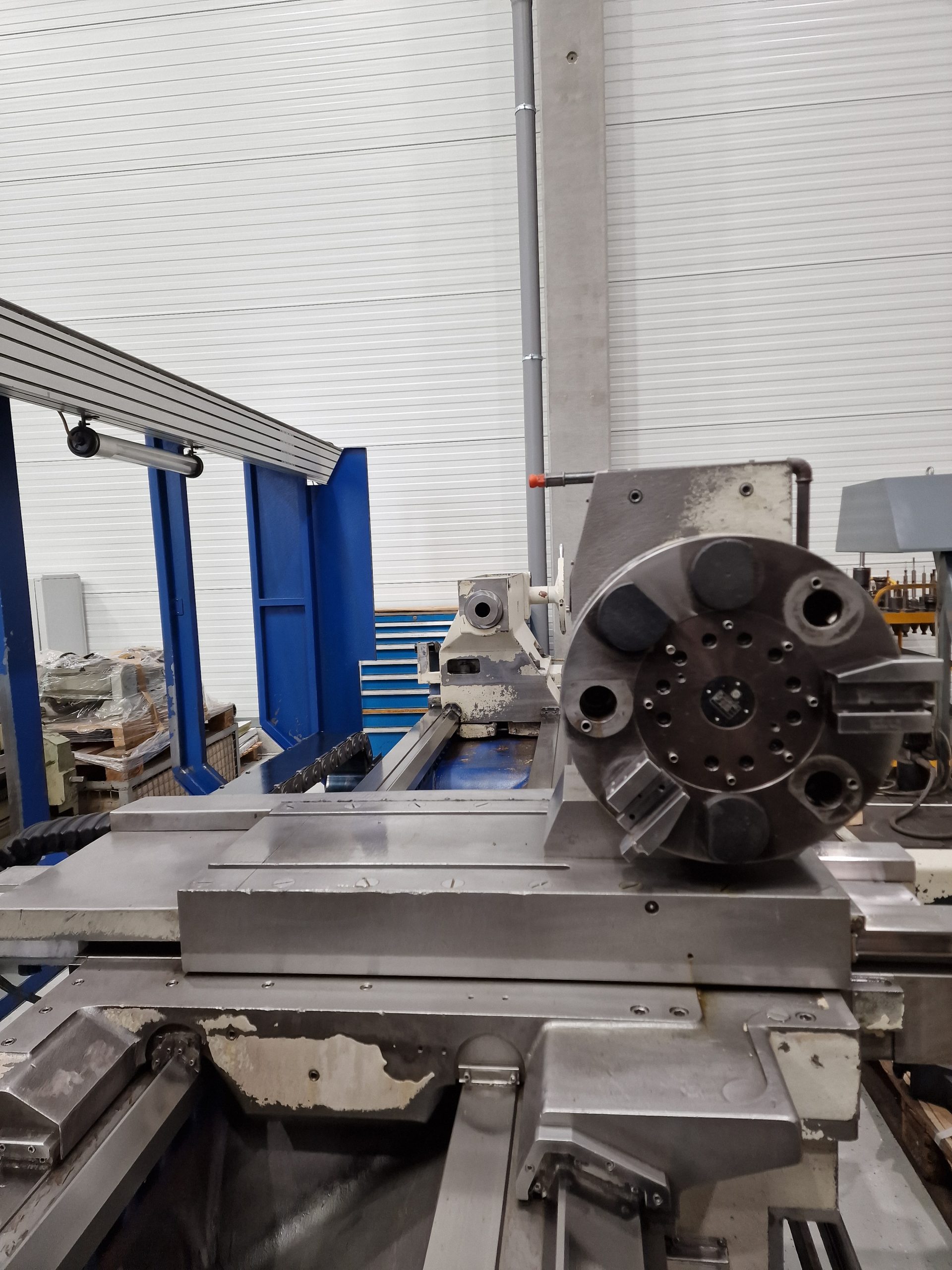

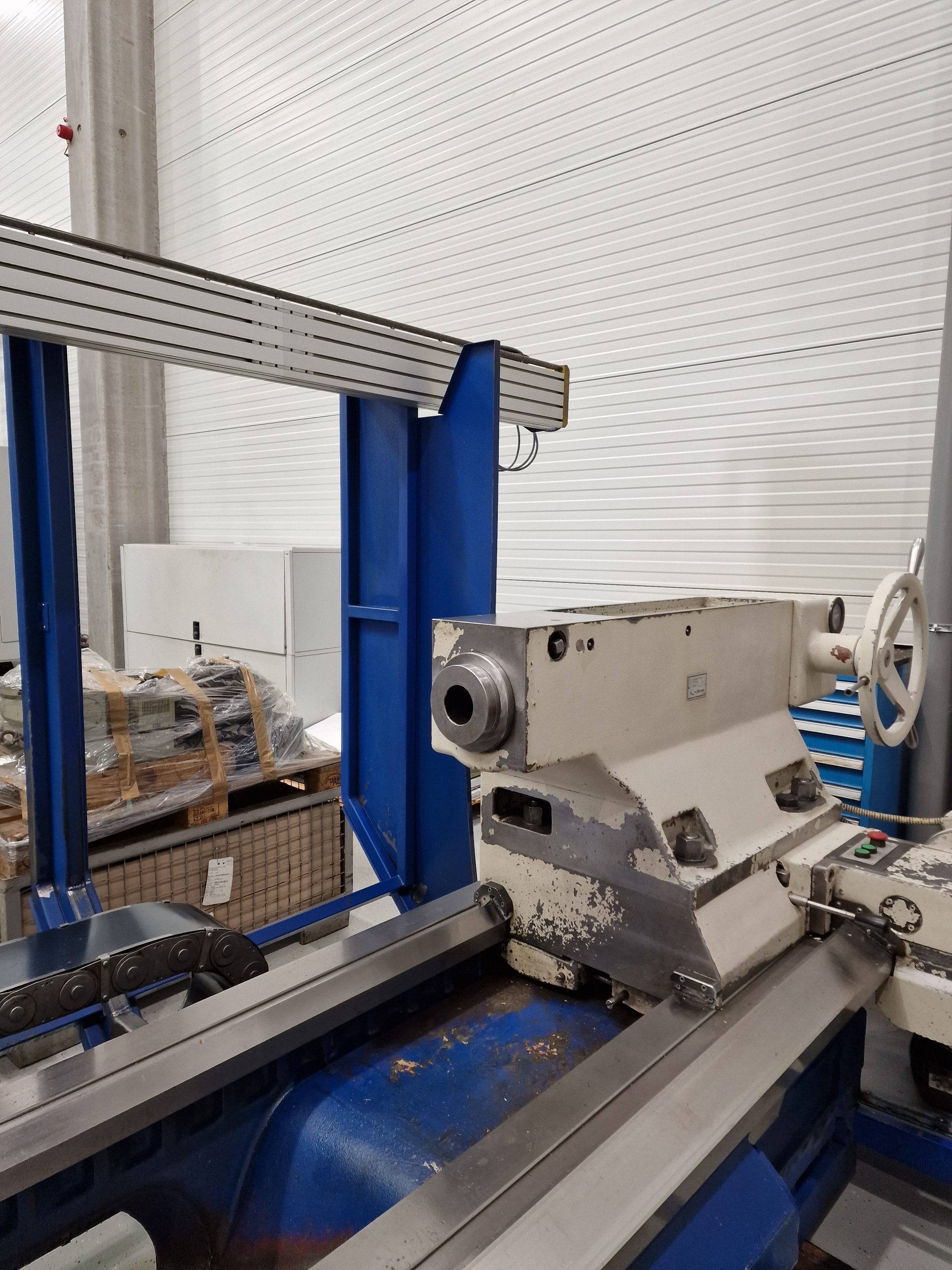

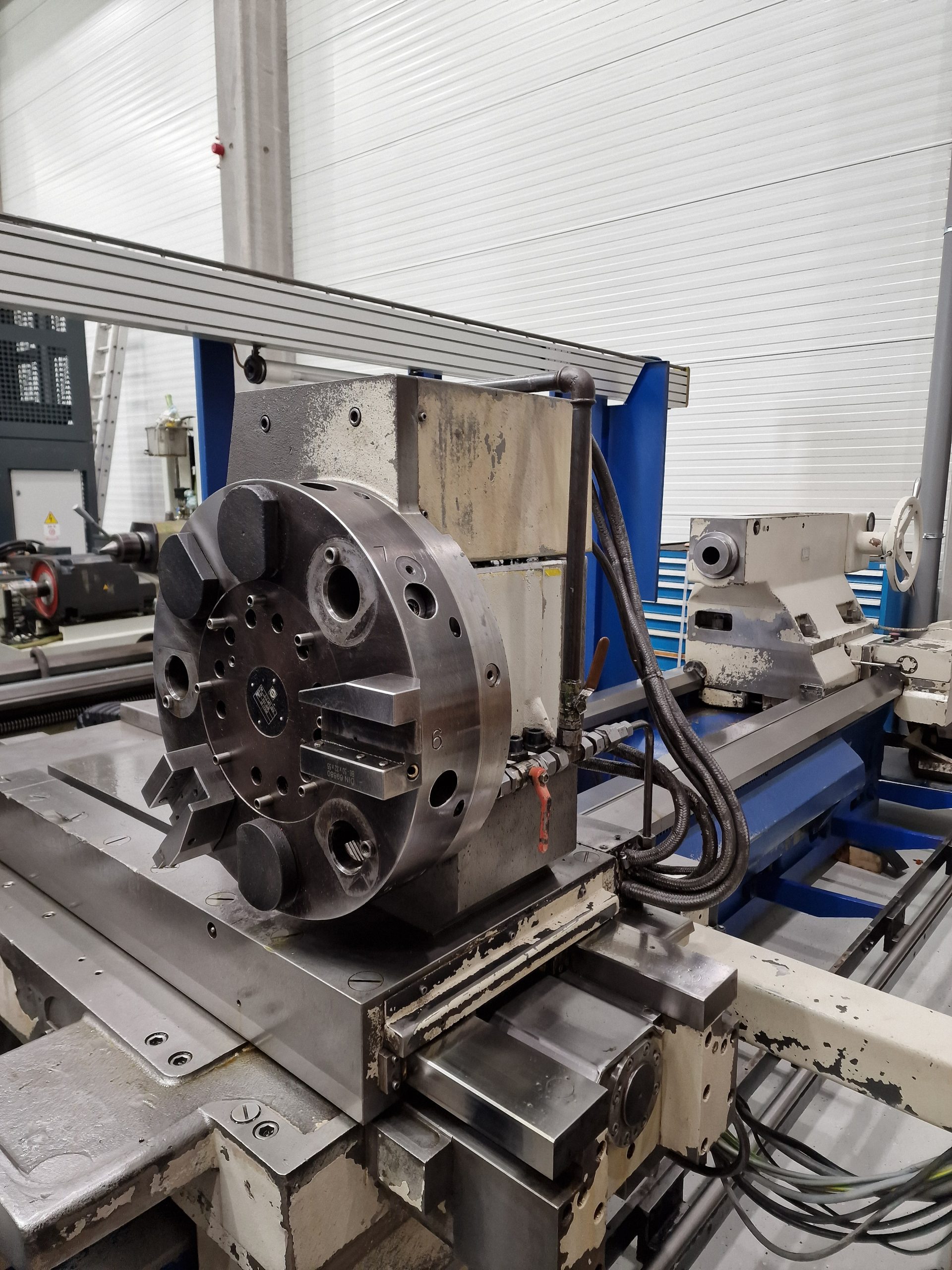

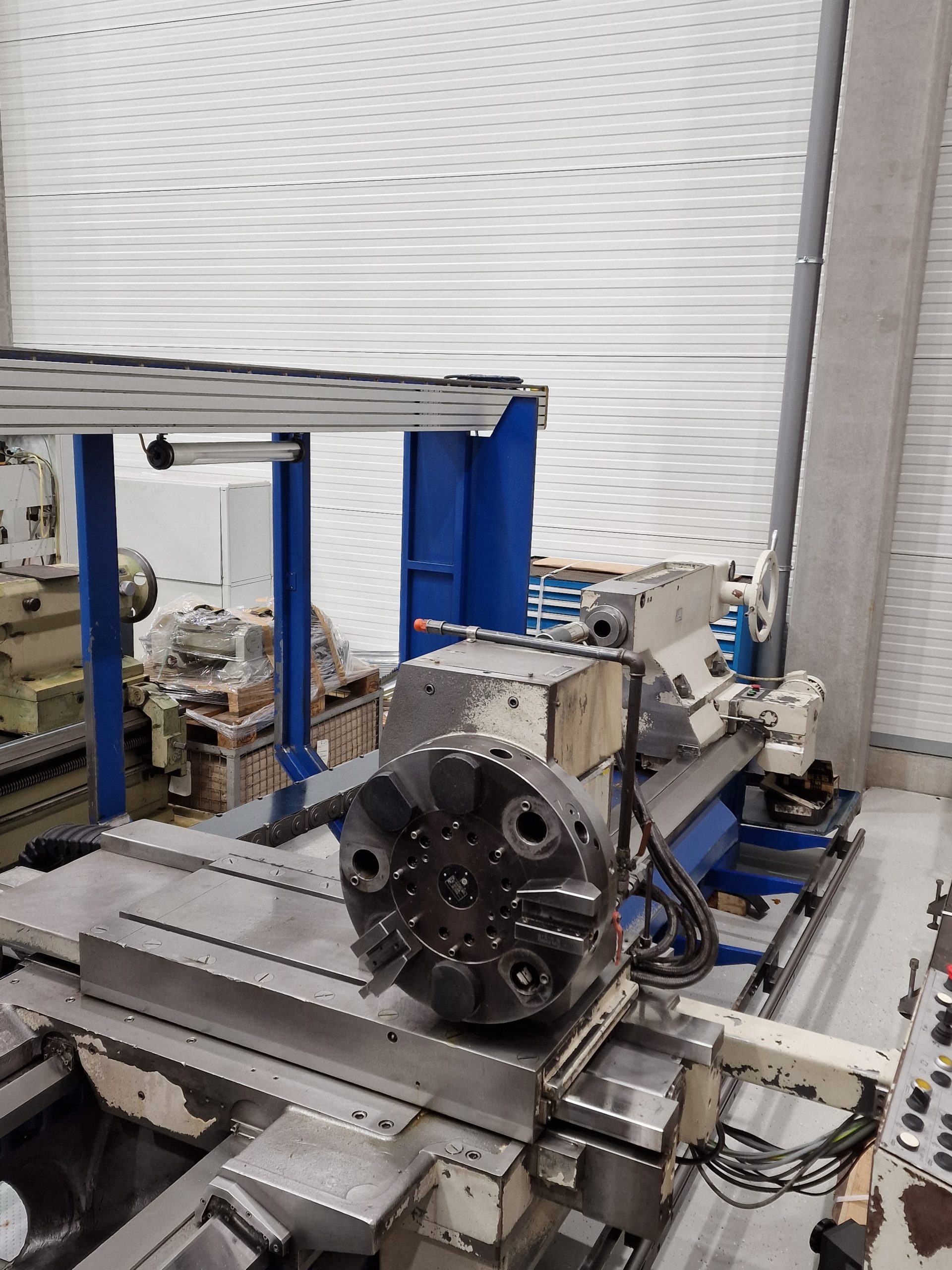

Turning machine -TOS SUA 100

Center length	4,000 mm
Turning diameter	730 mm
Turning diameter over bed slide	1,050 mm

Workingpiece between center:
max. mass	6,000 kg
max. speed of this workpiece	9 r.p.m.

Workingpiece in rest:
max. mass	8,000 kg
max. speed of this workpiece	9 r.p.m.

Max torque:
on spindle	12,000 Nm
in limit speed of spindle	14 r.p.m.

Spindle speed	2-1,000 r.p.m.

Headstock work spindle	CSN ISO 702/II

Electric main motor	37 kW
	1,500 r.p.m.

Technical details and specifications are subject to change without notice
