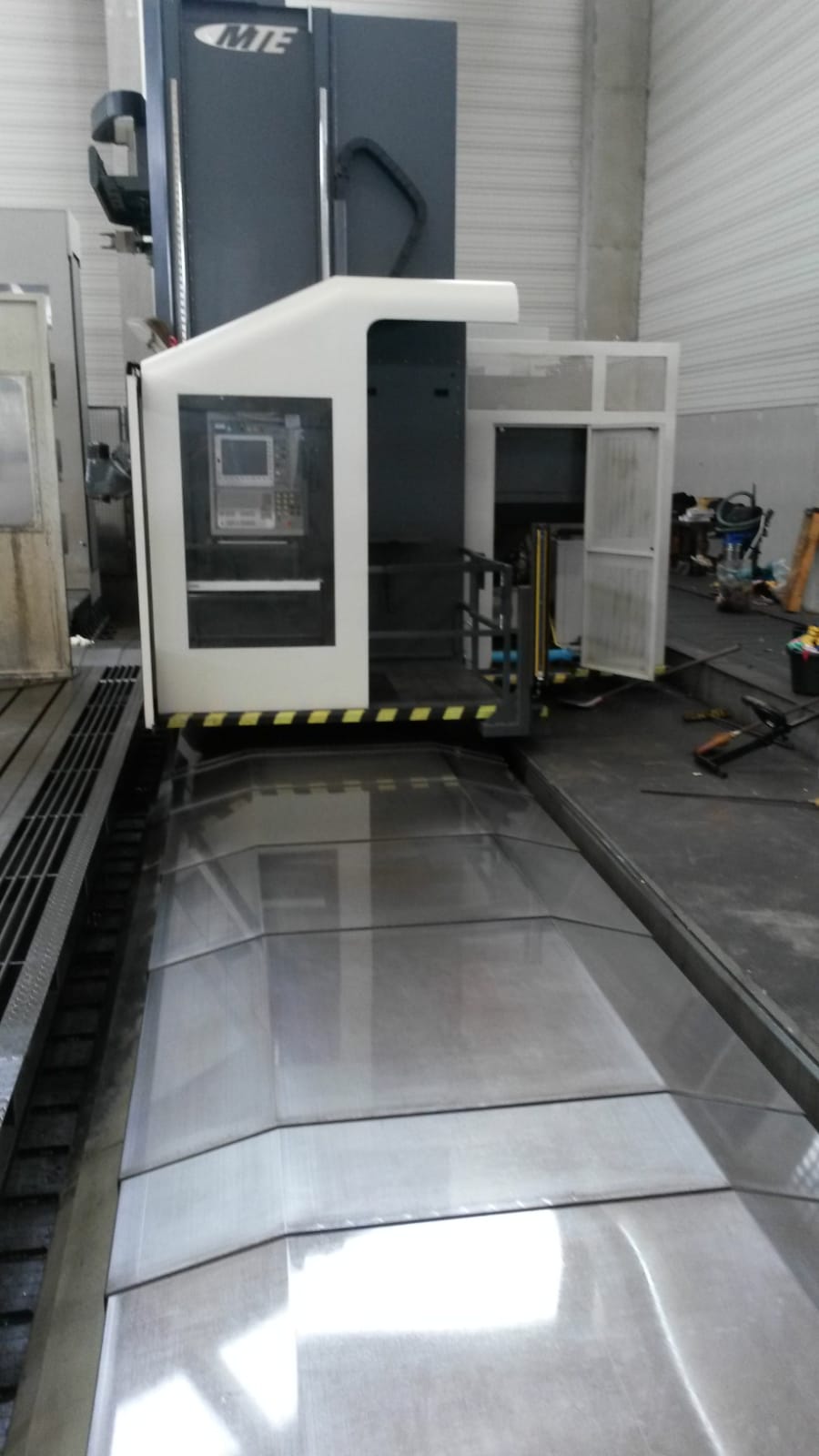

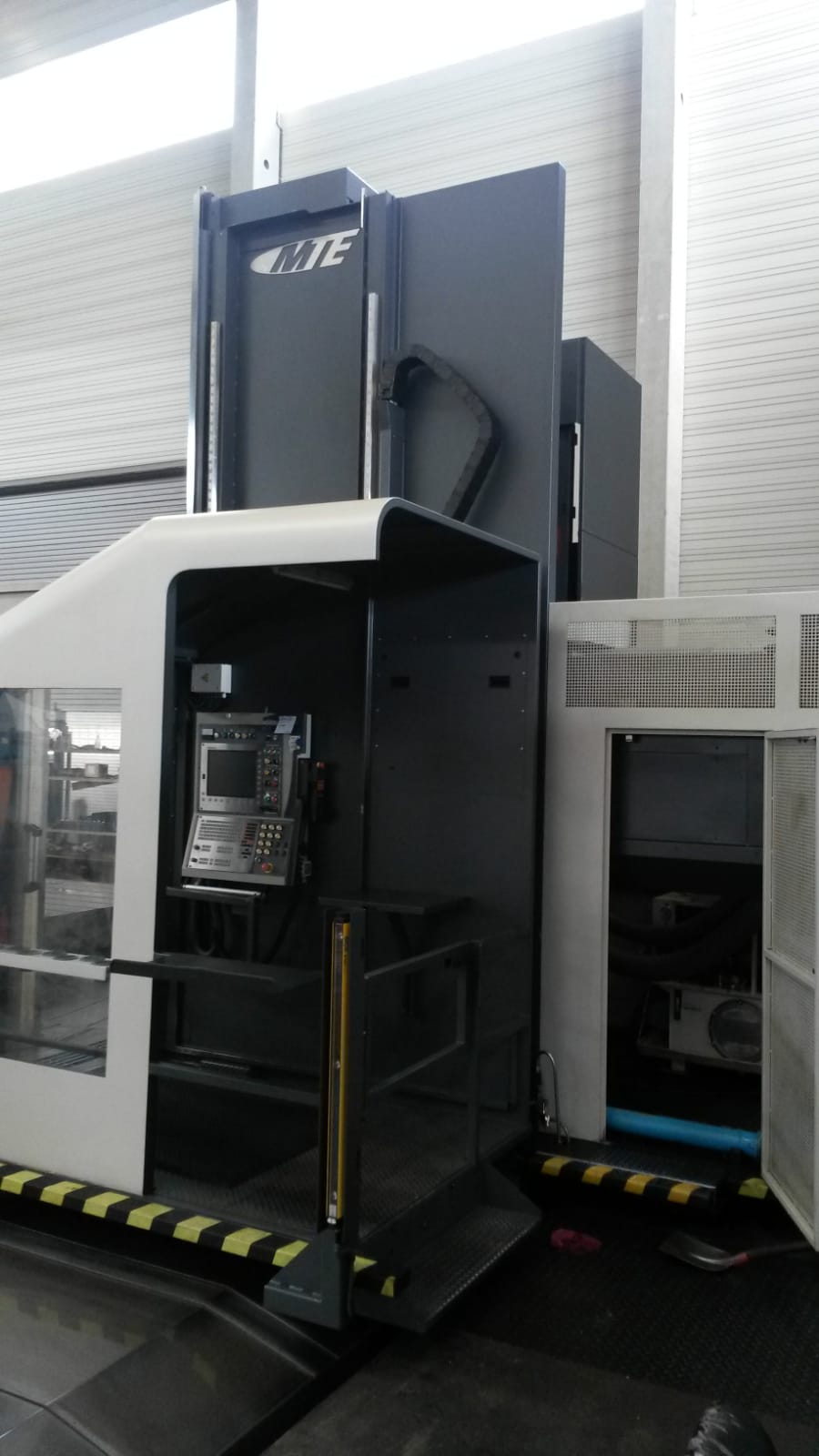

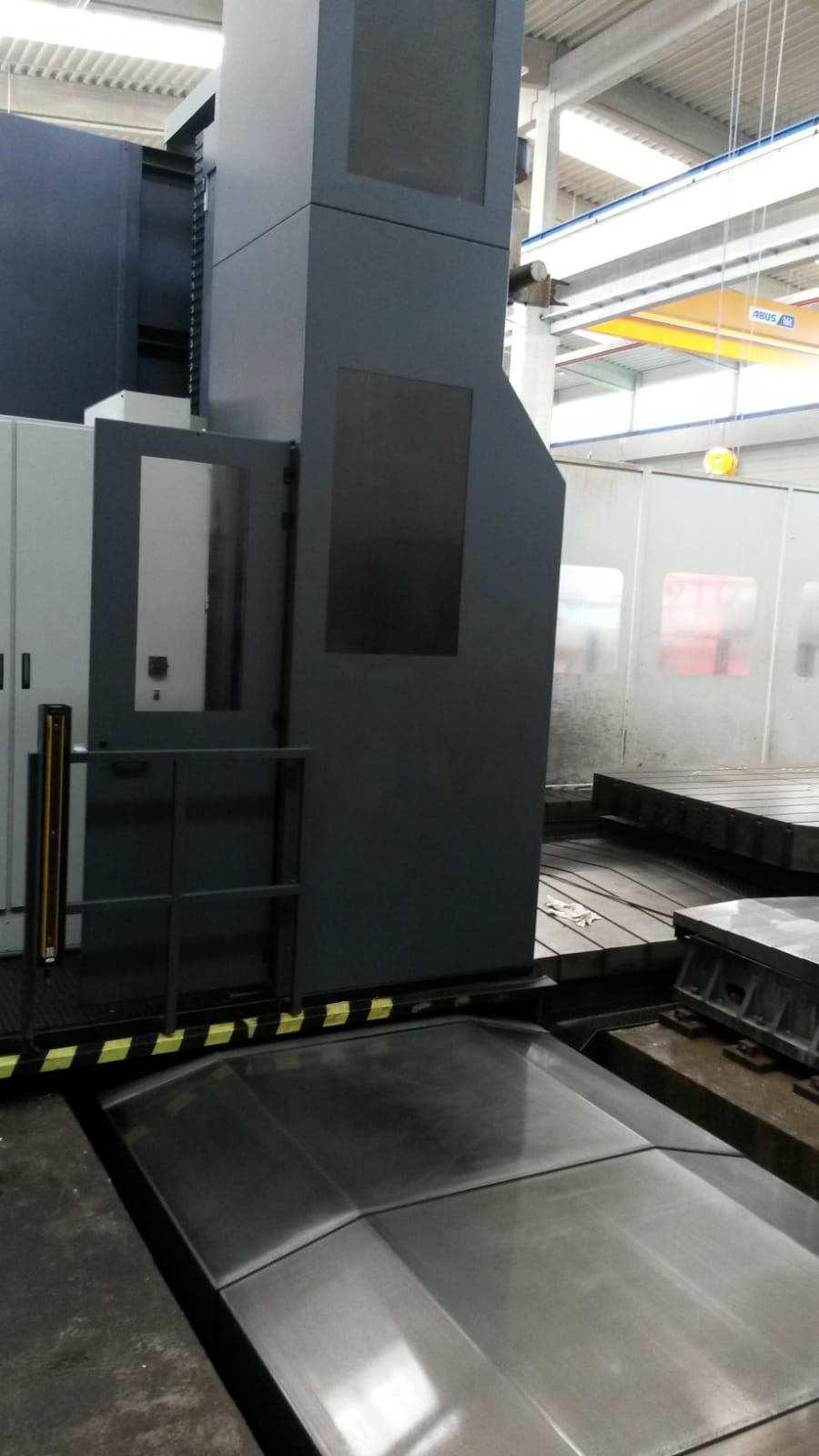

Traveling column milling maschine MTE

Offer Details

Maschinetype Traveling column milling machine MTE
Make MTE
Type FBF-M 10000
New in 2014
Control CNC Heidenhain iTNC 530
Origin Spain
Term of delivery Immediately
Quotation Ex works
Price on request

Travel
x-axis	10000 mm
y-axis	3000 mm
z-axis	1500 mm
Cone	50 DIN 69871 A
Hydraulic tool blocking	yes
Main drive power	41 kW
Spindle turning speed	4000 U/Min
Speed control / transmission	3 stufig
Lower working range	0-516 U/min
Medium working range	460-1288 U/min
Upper working range	1200 – 4000 U/min
Feed range
Working feed	0-12000 mm/min
Rapid traverse	25 m/min

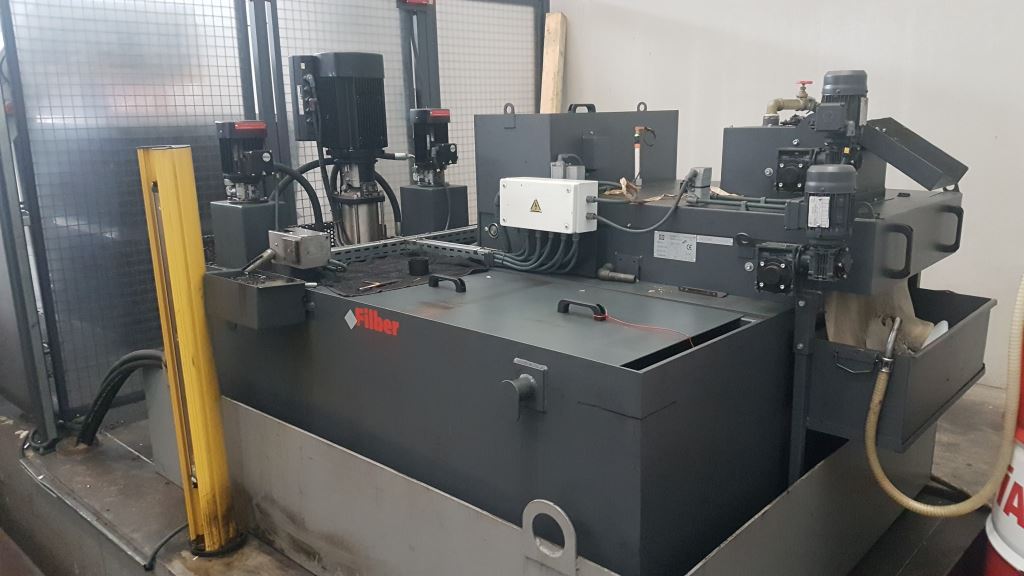

Coolant
Working pressure	25-40 bar
Connected load: approx	ca. 57 kVA
Feed range
Final drive motors Siemens (digital)
Rapid traverse max: (X / Y / Z axis)	25000 mm/min
Working feed: (X / Y / Z axis)	15000 mm/min
Weight of the Maschine	47000 kg
Axis drive System
X-axis (longitudinal)	pinion / rack (make Atlanta)
Z-axis (vertical)	Ball screw (preloaded) diam. 63×20
y-Achse (quer)	Ball-screw (preloaded) diam 50×20
Hydraulic weight compensation in the vertical axis
Internal cooling:
Cooling through the spindle for AHC	20 bar
Increase coolant pressure (IKZ) to	40 bar

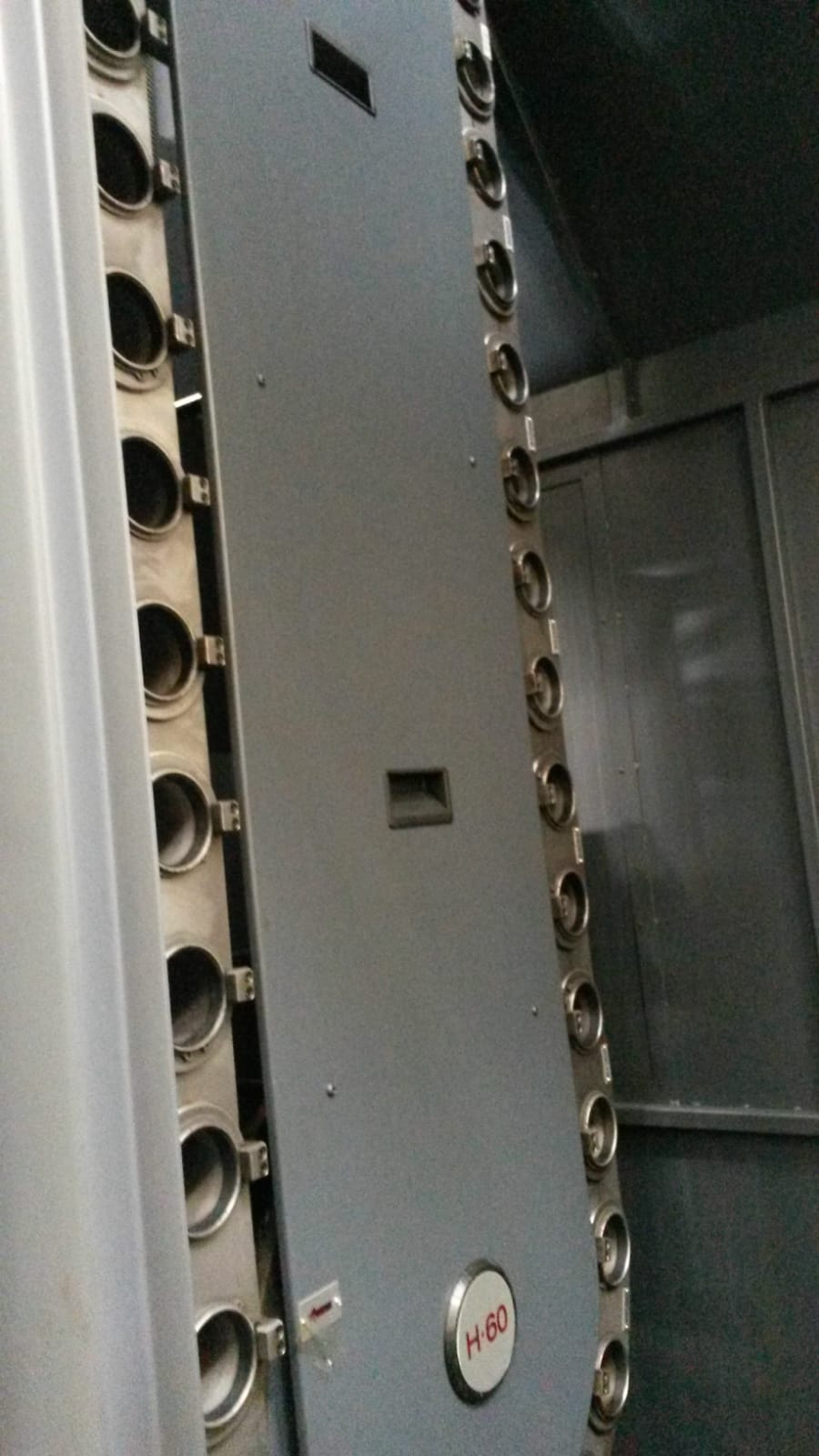

Automatic tool changer H / V	60 Locations
Wireless key system M & H RWP38.41

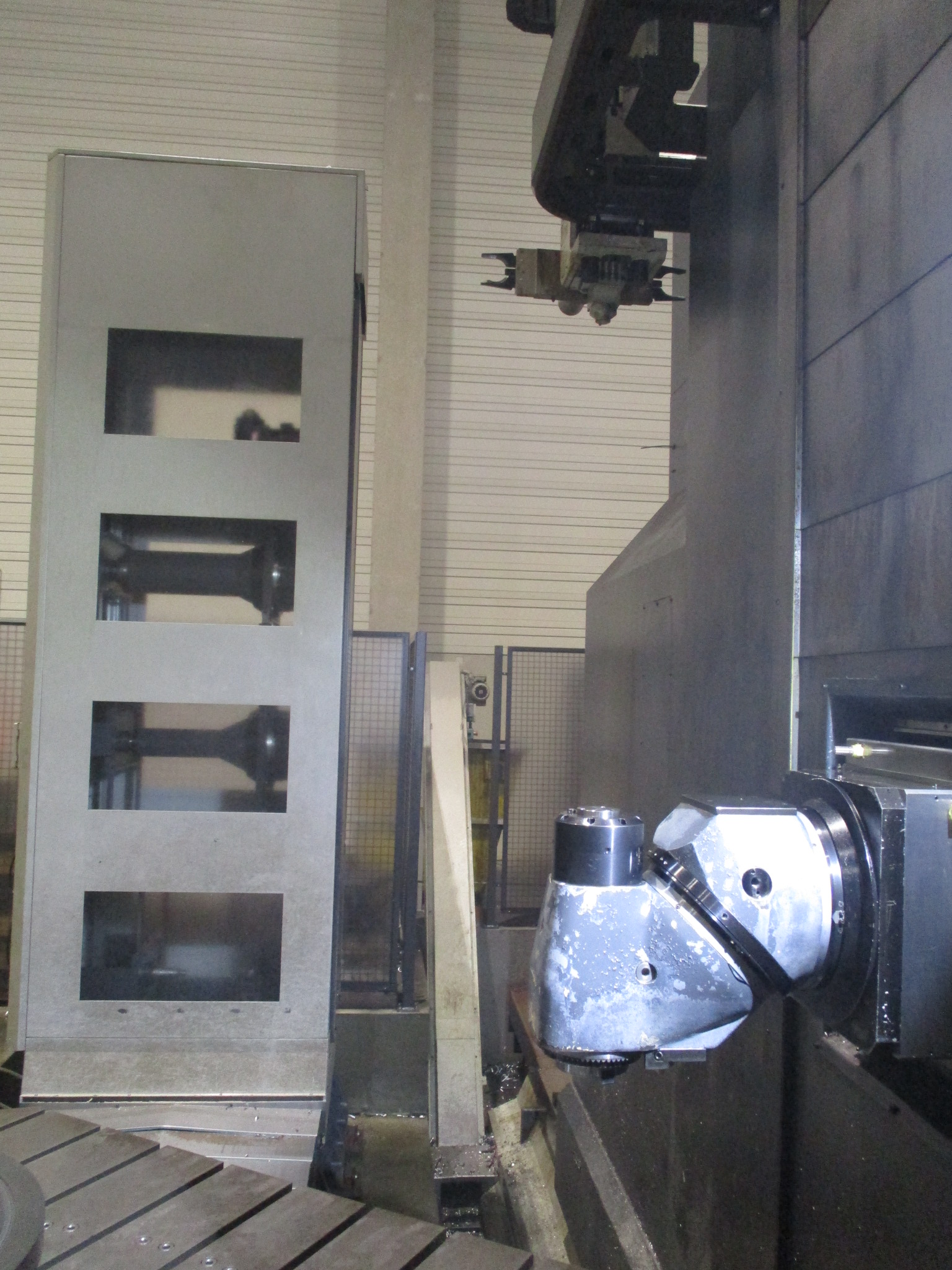

Automatic milling head change System

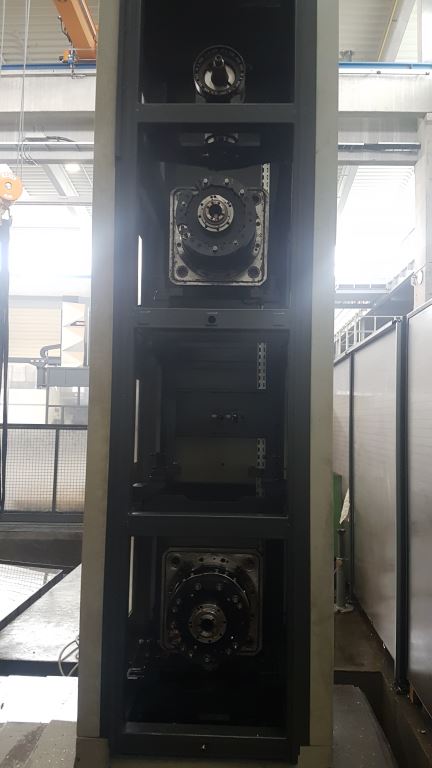

The automatic milling head changing system AHC-2 enables the fully automated changing of the above milling heads via the NC program. Milling head pick up station for 4 milling heads can be moved automatically in X-direction.
No. 1 Automatic Milling Head
Construction	diagonal
Speed range	0-4000 U/min
Pitch / pivot positions	2,5° x 1° (mit Hirthverzahnung)
Tool holder	DIN69871 AD (ISO50)
No. 2 additional milling head horizontal (drilling spindle)
Outer diameter	198 mm
Speed range	0-4000 U/min
Tool holder	DIN69871 AD (ISO50)
No. 3 Additional milling head horizontal (drilling spindle)
Diameter (outside)	130 mm
Speed range	0-4000 U/min
Axis drive / axis	DIN 69871 AD (ISO 40)
Henninger adapter milling head 880 – 50 with 4x 90 ° indexing	SK50 (ISO 50)
Changes and errors in the technical details and the information reserved
