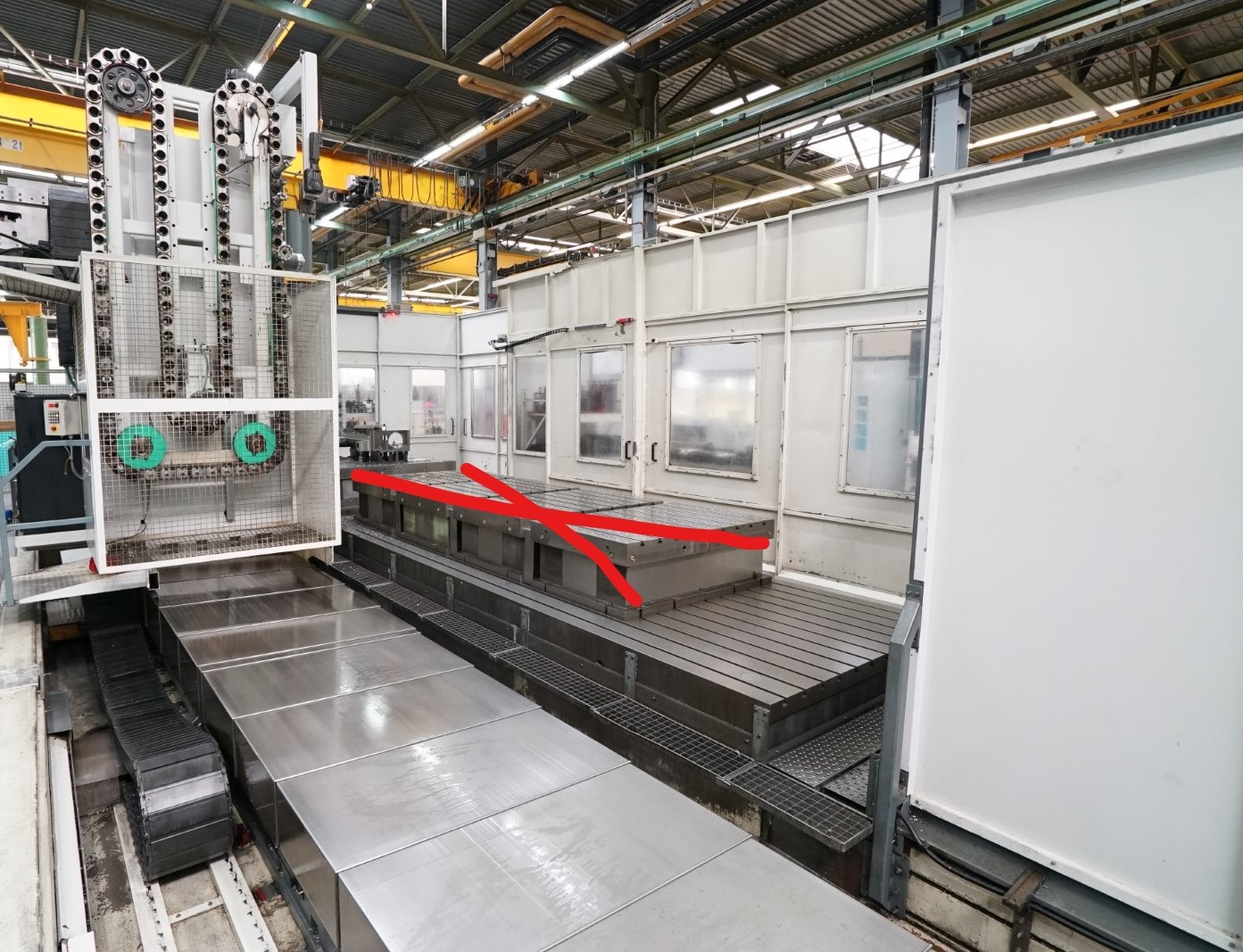

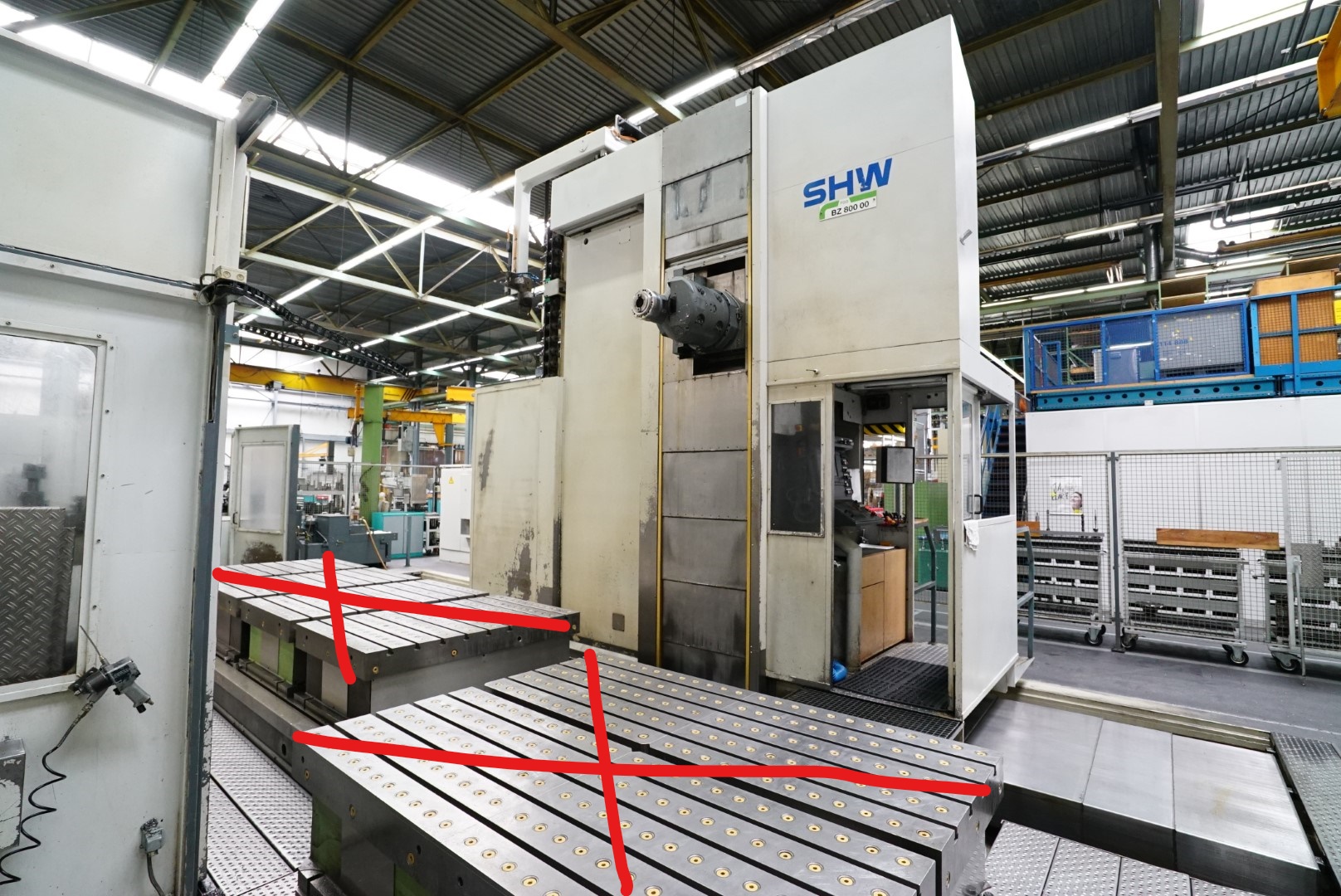

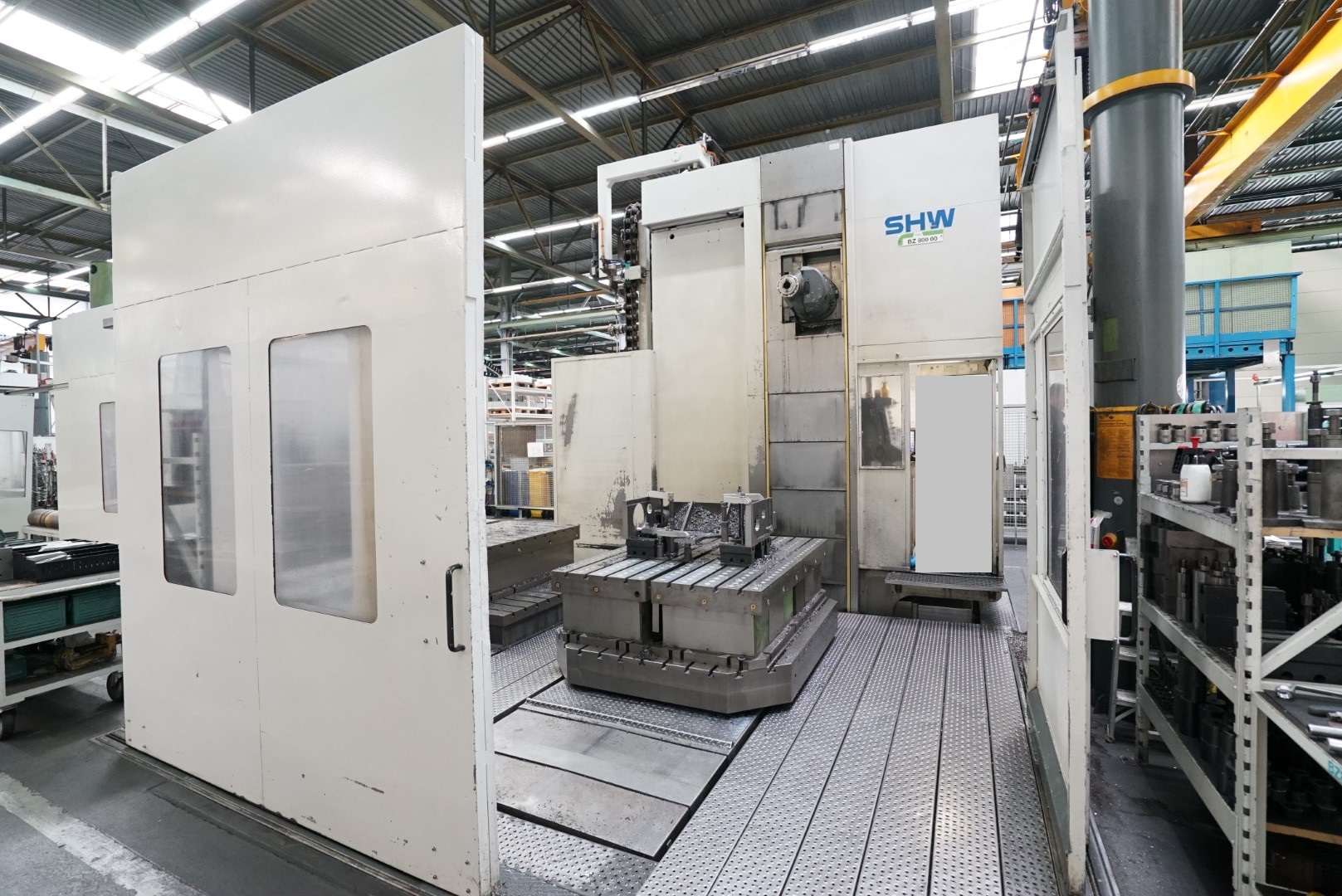

SHW Traveling column milling machine

Workspace:
x-axis	8000 mm
y-axis	2600 mm
z-axis	1500 mm
Weight ca.	50000 kg
Feed range
x-axis	2-12000 mm/min
y-axis	2-12000 mm/min
z-axis	2-15000 mm/min
Rapid traverse
x-axis	12000 mm/min
y-axis	12000 mm/min
z-axis	12000 mm/min

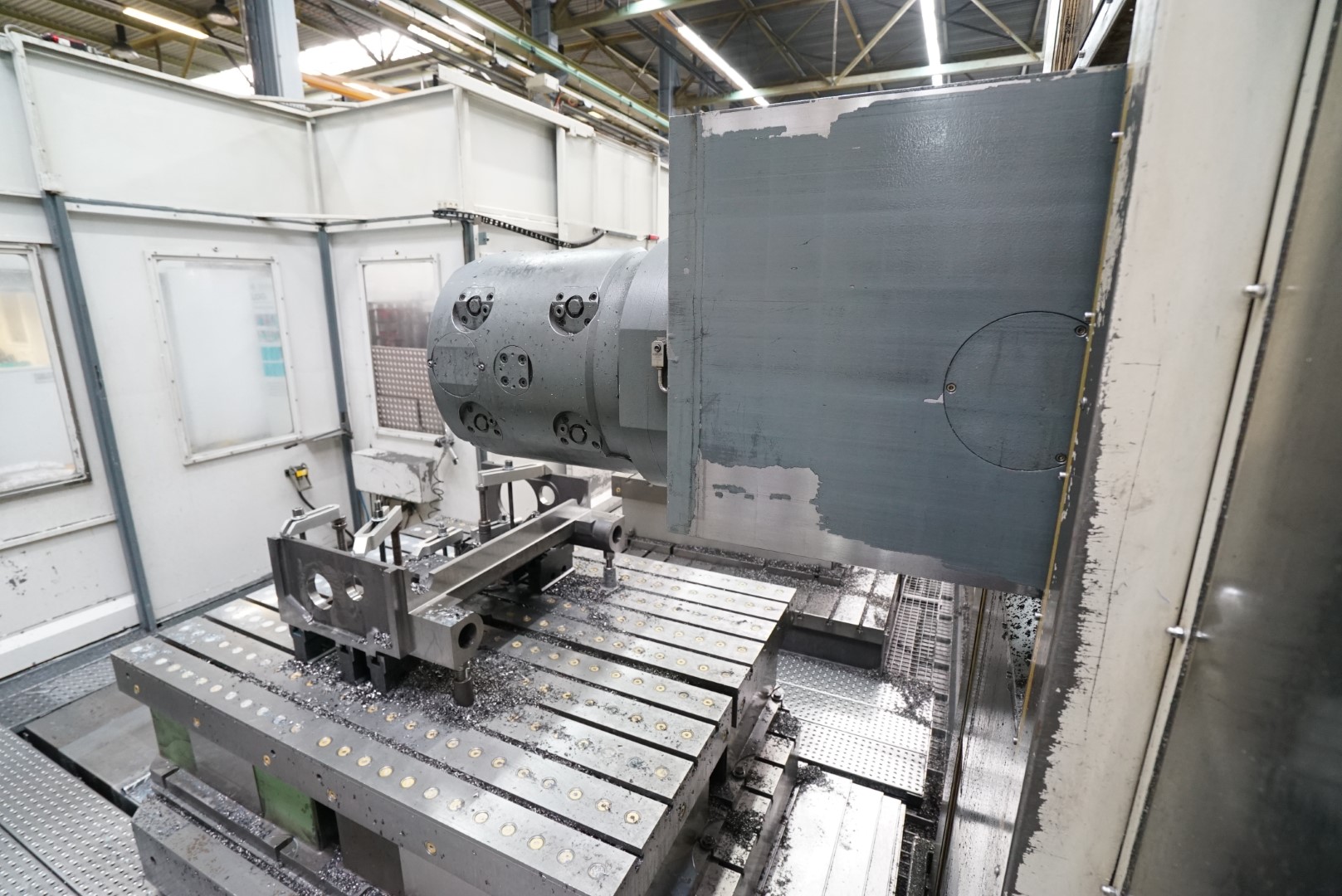

Headstock with automatic universal milling head
Swivel range milling head holder automatically	3 x 1°
Swivel range milling head automatically

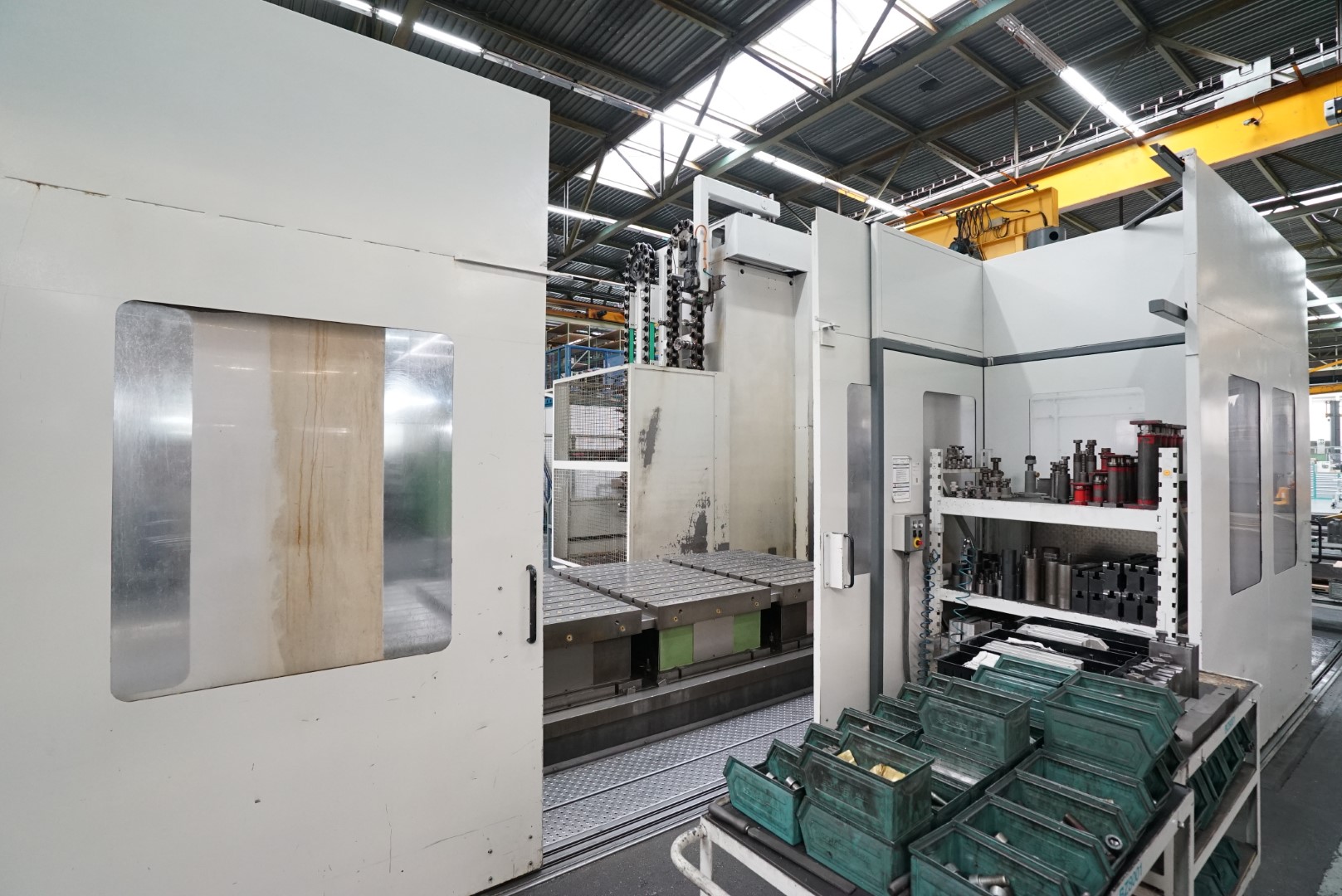

Automatic tool changer
Tool Magazine for	120 Tools
Tool Diameter with filter Magazine	125 mm
For free adjacent seats	250 mm
Max. tool lenght	700 mm
Max. tool weight	25 kg
Clamping plate
Clamping Surface	6000 x 2000 mm
Height	300 mm
T-solts 12 PCs, DIN 650	22 mm
CNC-Rotary table on moving bed
Clamping Surface	1800 x 2200 mm
Table load max.	8000 kg
Index
Faceplate Diameter	500 mm
Top height	350 mm
Coolant System
Coolant supply via nozzle ring, switchtable to internal coolant supply for Tools according to DIN 69871-AD50.
Universal swivel milling head
Separate CNC dividing head with tailstock for machining shafts
Accessories:
Measuring probe
Separate rotary table
Platts fields universal swivelling milling head
Documentation
Changes and errors in the technical details and the information reserved.

Maschinetype	Traveling column milling machine
Make	SHW
Type	UFZ 6 L
New in	2001
Control	Heidenhain TNC430
Origin	Germany
Term of delivery	Immediately
Quotation	Ex. works
Price	on request
