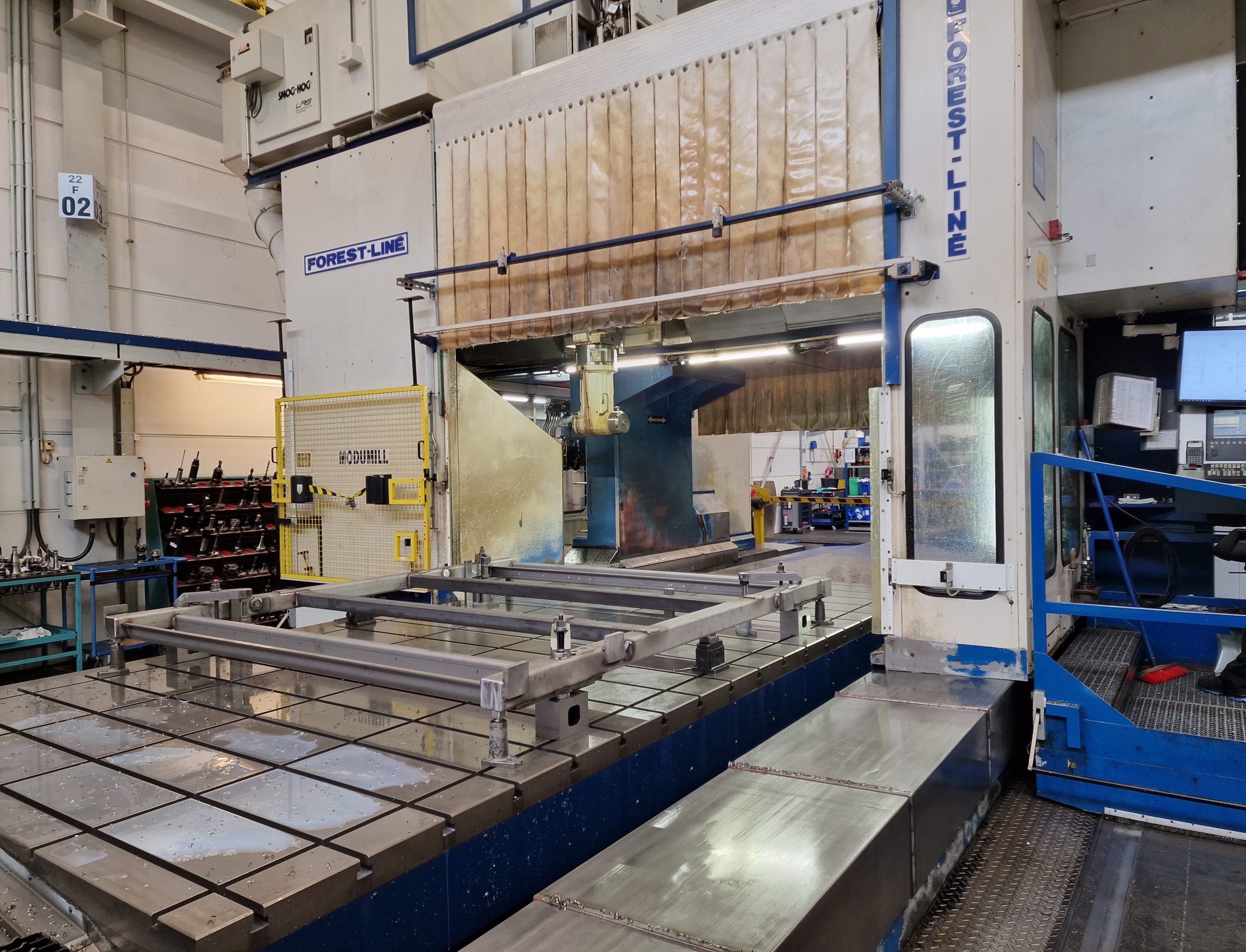

Portal milling machine-FOREST LINE

Machinetype	Portal milling machine
Make	FOREST LINE
Type	Seramill

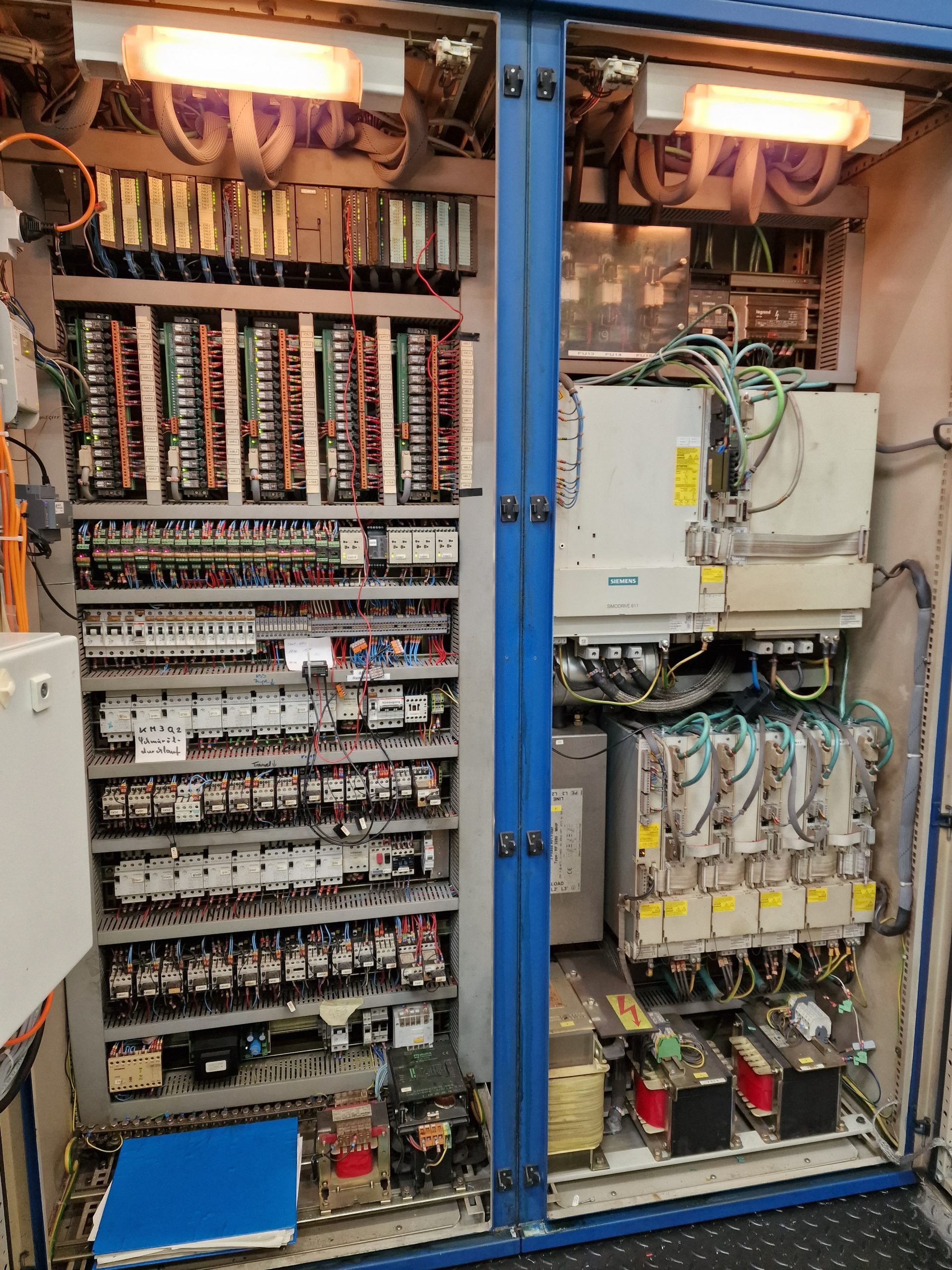

Control	SINUMERIK 840D
New in	1999
Retrofit	2021
Term of delivery	by arrangement
Quotation	Ex. works
Price	On request

Technical details

Travels:
X-axis	11,450 mm
Y-axis	3,500 mm
Z-axis	1,250 mm

Cross-section of the Z-axis slider:	360 x 360 mm
Gantry passage	3,000 mm
Height below vertical spindle	1,400 mm
Working clamping width	2,500 mm

Milling unit: Type FA 305 C

Vertical head with locker:
Available power	30 kW
Speed max.	4,00 rpm

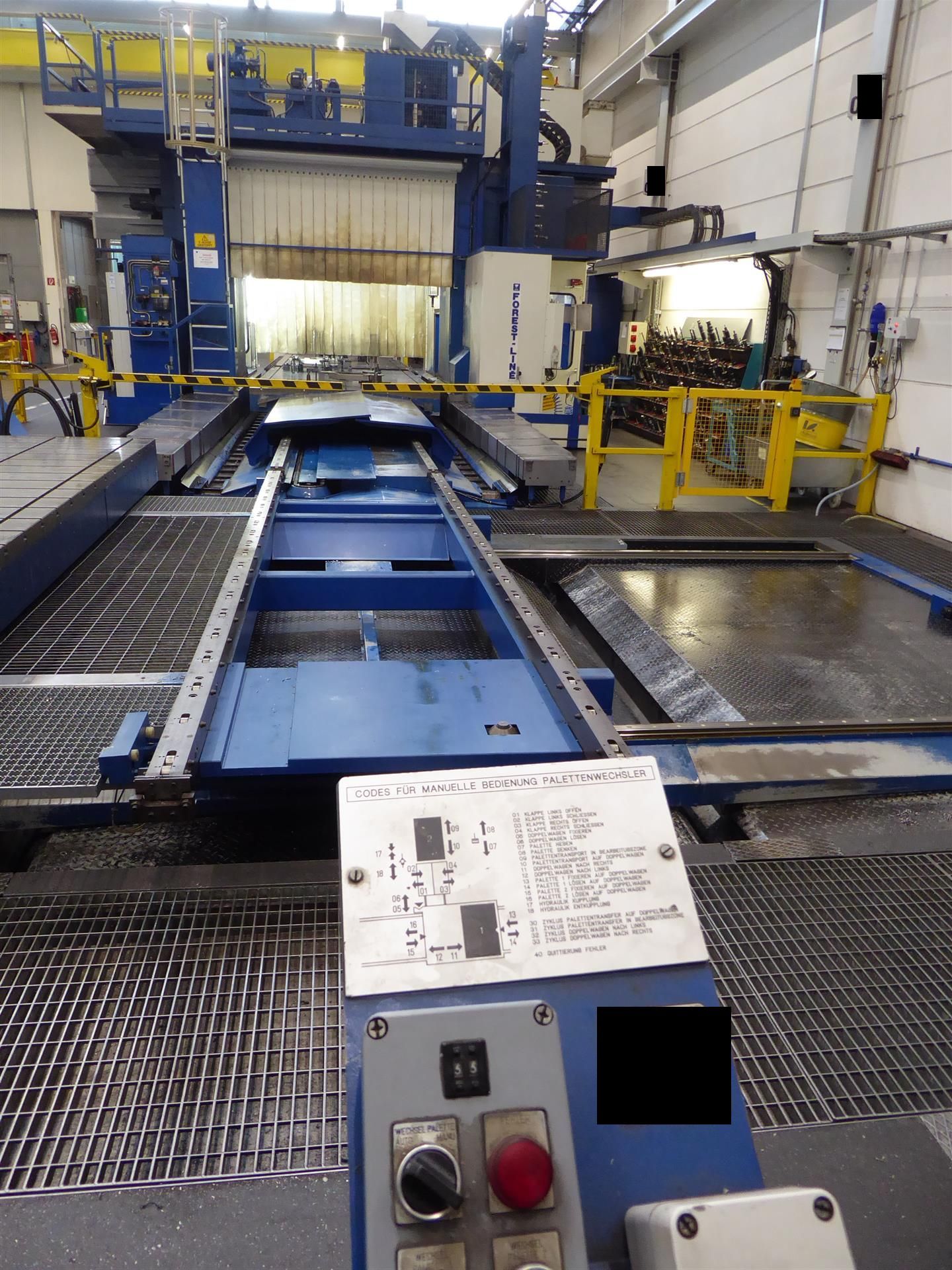

Longitudinal pallet system
1 pallet shuttle with 2 storage stations
1 manual pallet transfer system between machine and shuttle
2 workpiece holder pallets	5,000 x 2,500

Tool changer:
Chain magazine	80 positions


Changes and errors in the technical details and the information reserved.

Equipment

Cooling devices:

– Cooling via orientable nozzles

– Cooling through the spindle centre, 3.000 l container,

capacity: 30 l/min, pressure: 7 bar at the tool

2 chip conveyors, discharge height: approx. 1.250 mm

Gantry panelling

Touch probe, Brand: RENISHAW, Type: MP14

Electronic hand wheel

Remote diagnosis

Tool management and wear management

Documentation in 2 copies: German / French

CE marking

The machine can be inspected by appointment

Very well-kept, continuously maintained condition
