KERN Cycle controlled lathe

Working range
Rotating diameter above saddle	820 mm
Perimeter diameter above cross slide	520 mm
Centre distance	1/2/3/4/5/6 m
Main drive
Drive power	46 kW
Gearing stages electrically switched	2 stages
Headstock
Spindle nose DIN 55026	Size A11
Spindle borehole	132 mm
Spindle diameter in front bearing	190 mm
Speed range	1-1800 rpm
Alternatively
Spindle nose DIN 55026	Size A11
Spindle borehole	162 mm
Spindle diameter in front bearing	220 mm
Speed range	1 – 1300 rpm
Compound slide
Feed range, transverse	0.001 – 1000 mm/rev.
Feed range, longitudinal	0.001 – 2000 mm/rev.
Thread	0.01 – 999.999 mm
Fast traverse, transverse/longitudinal	5/10 m/min
As of centre distance 4000 mm	5/7 m/min
Tailstock
Quill Diameter	125 mm
Optional quill Diameter	160mm
Quill travel	280 mm
Quill internal taper	MK 6
Weight of the machine:	12,3 to
Accessories:
3 standard lunettes
1 boring bar holder
2 handwheels

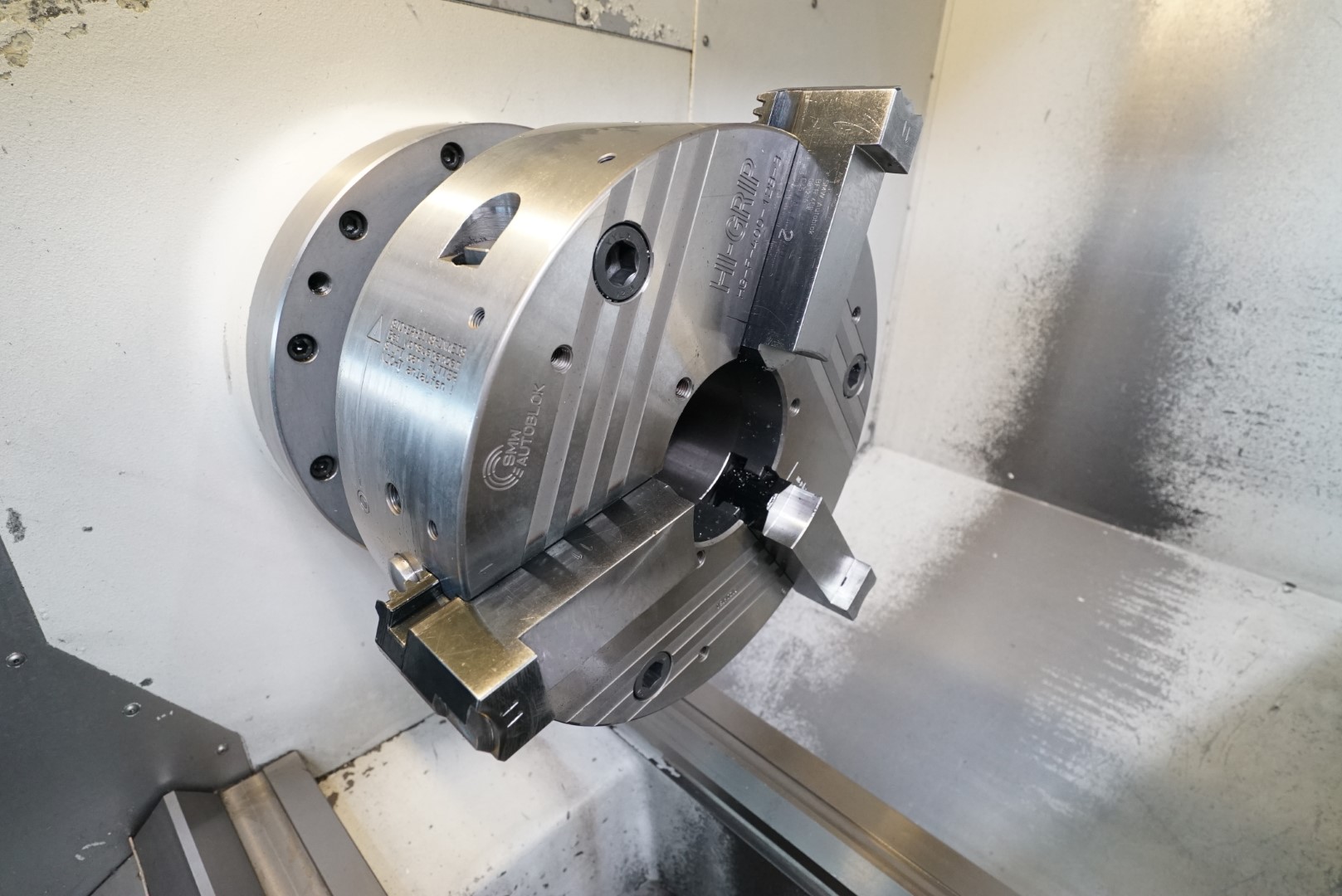

3-jaw chuck
1 hydr. Bezel
Multifix holder
Capto holder chip
Chip conveyor
Oil mist extraction
Documentation

Changes and errors in the technical details and the information reserved.
