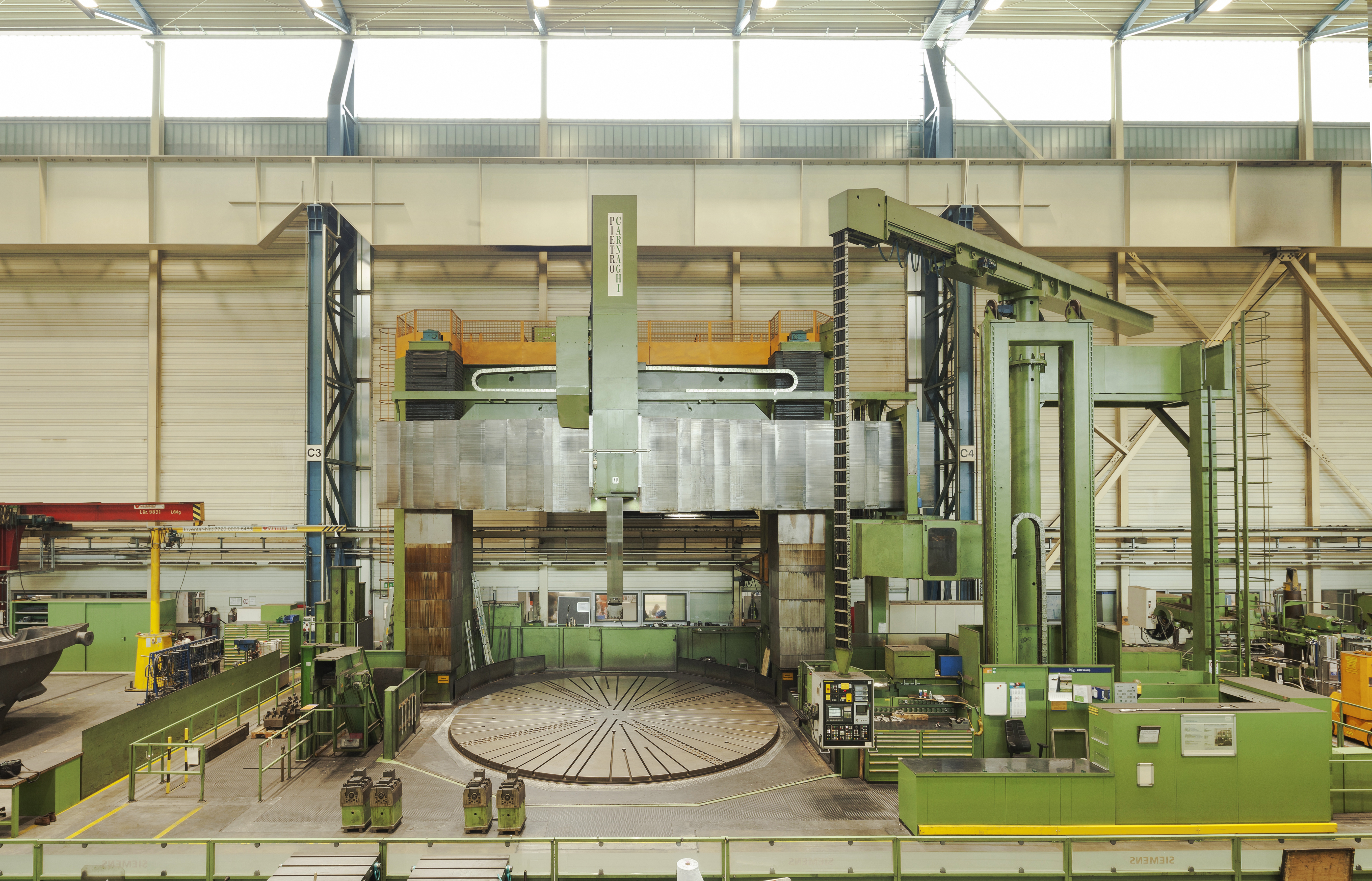

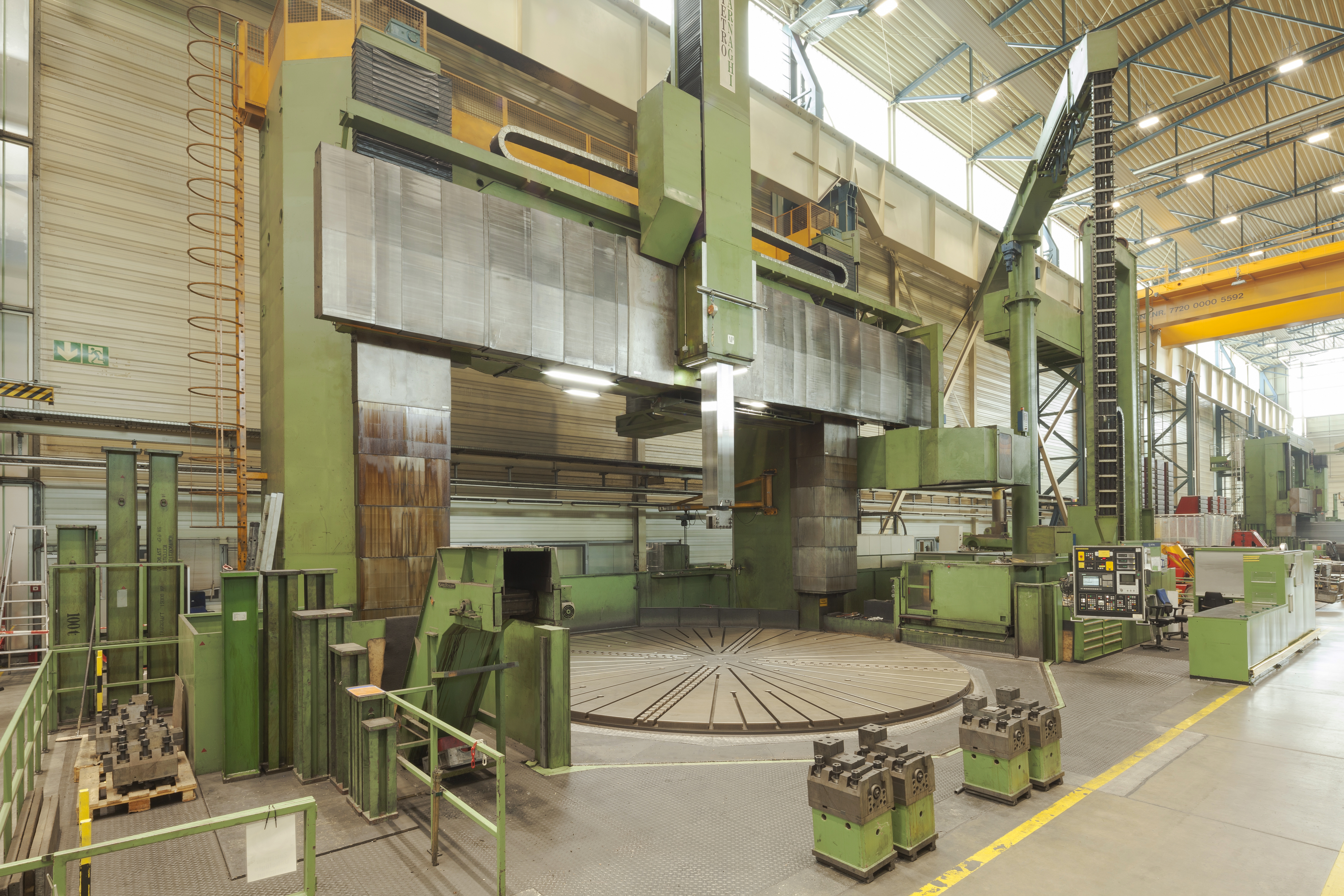

CNC Vertical Turret Lathe – Double Column-CARNAGHI PIETRO

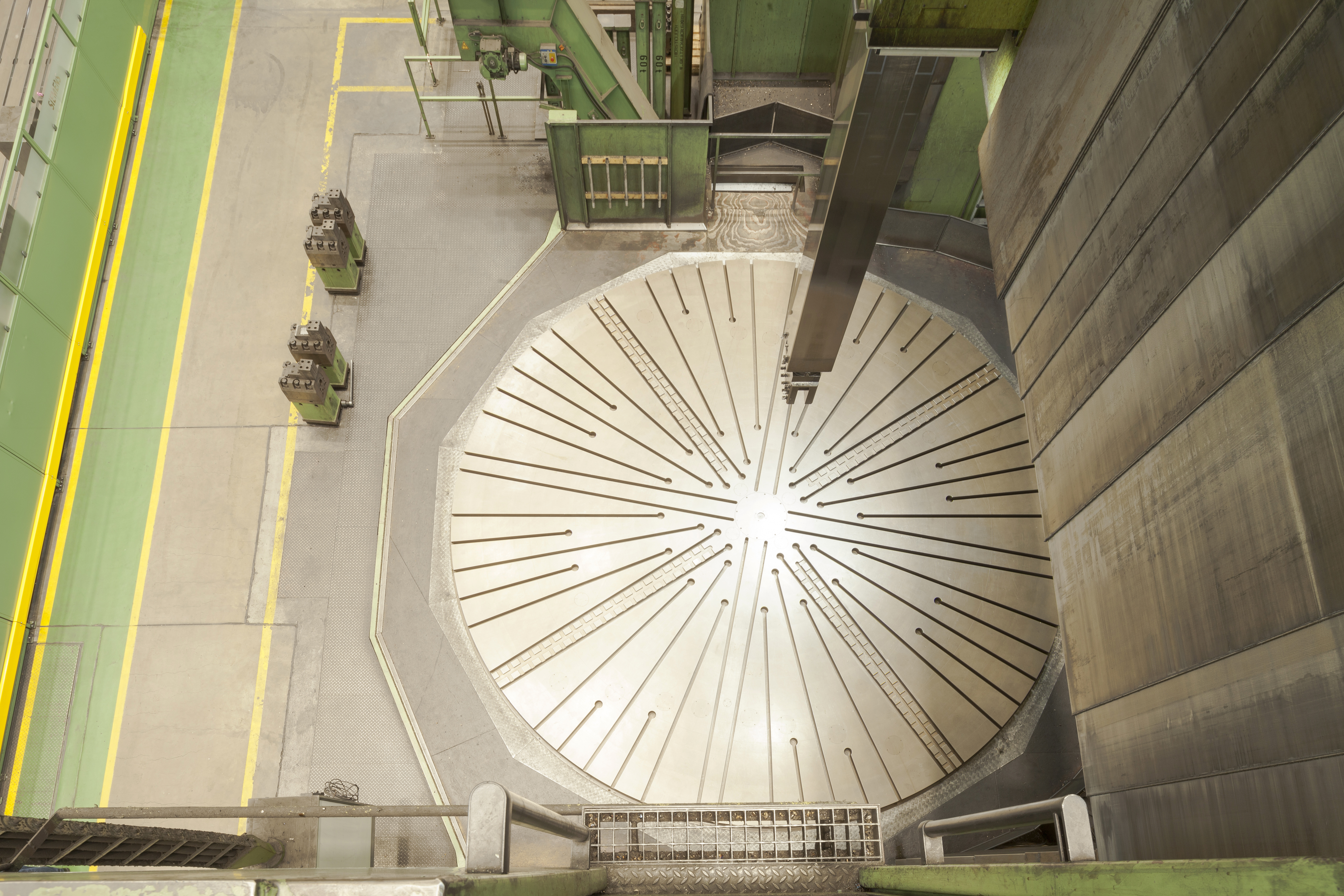

Faceplate Diameter	8.000 mm
Swing Diameter	8.500 mm
Turning height	6.550 mm
Cross rail adjustment – vertical	4800 mm
Workpiece weight max.	200 t
Faceplate turning speed range -stepless-	1-42 U/min
Max. torque on the faceplate	286.000 Nm
RAM head dimension	400 x 400 mm
z-axis	3.200 mm
x-axis	10.800 mm
Rapid traverse	10 m/min
Main drive Motor	100 kW
Workpiece power	55 kW
Total power requirement	187 kW
Weight of the machine ca.	300 t
Dimensions of the machine ca.	23 x 13 x 12,4 m

Accessories:
hydrostatic guideways x- and z-axis
12 Station tool head changer for Standard Tuning Tools, angular milling head with 1° indexing
c-axis for faceplate
b-axis for angular milling head
u-axis for adustment of accessories
driven tools with ISO 50 taper / 55 kW / 2000 rpm
operator platform height adjustable
driven tools with ISO 50 taper / 55 kW / 2000 rpm
working area with camera Control
height adjustable operators platform
coolant device, chip conveyor
KNOLL coolant system

Changes and errors in the technical details and the information reserved.

Machinetype	CNC Vertical Turret Lathe – Double Column
Make	CARNAGHI PIETRO
Type	AP 80 TM
New in	2002
Control	Siemens 840 C
Origin	Italy
Term of delivery	Immediately
Quotation	Ex. works
Price	on request
