bed milling machine CME

Table size	4000 x 1200 mm
x-axis	4000 mm
y-axis	1200 mm
z-axis	1500 mm
2 screens, a sliding screen at the front of the table and another on stage.
Table size max.	10 t

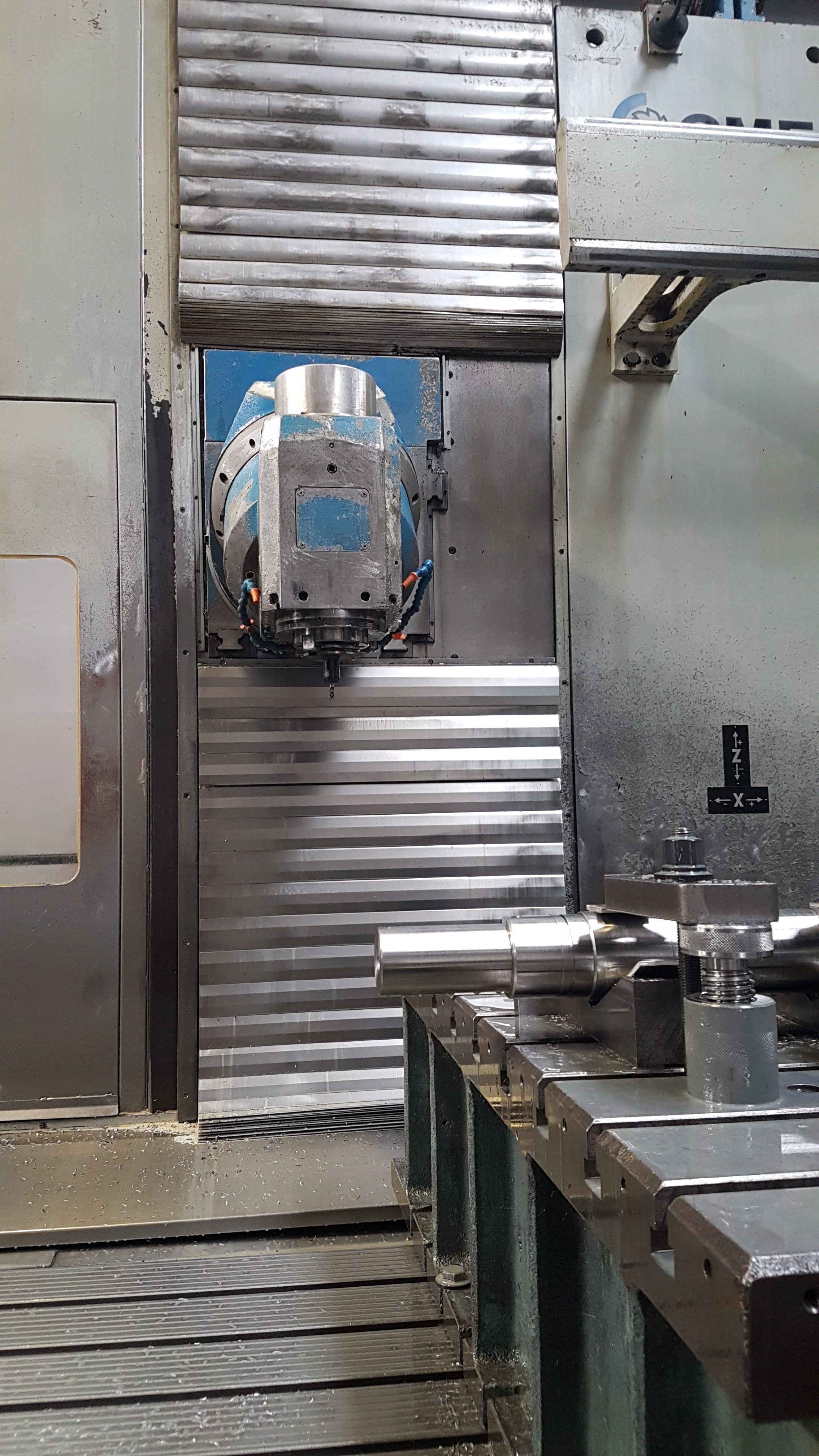

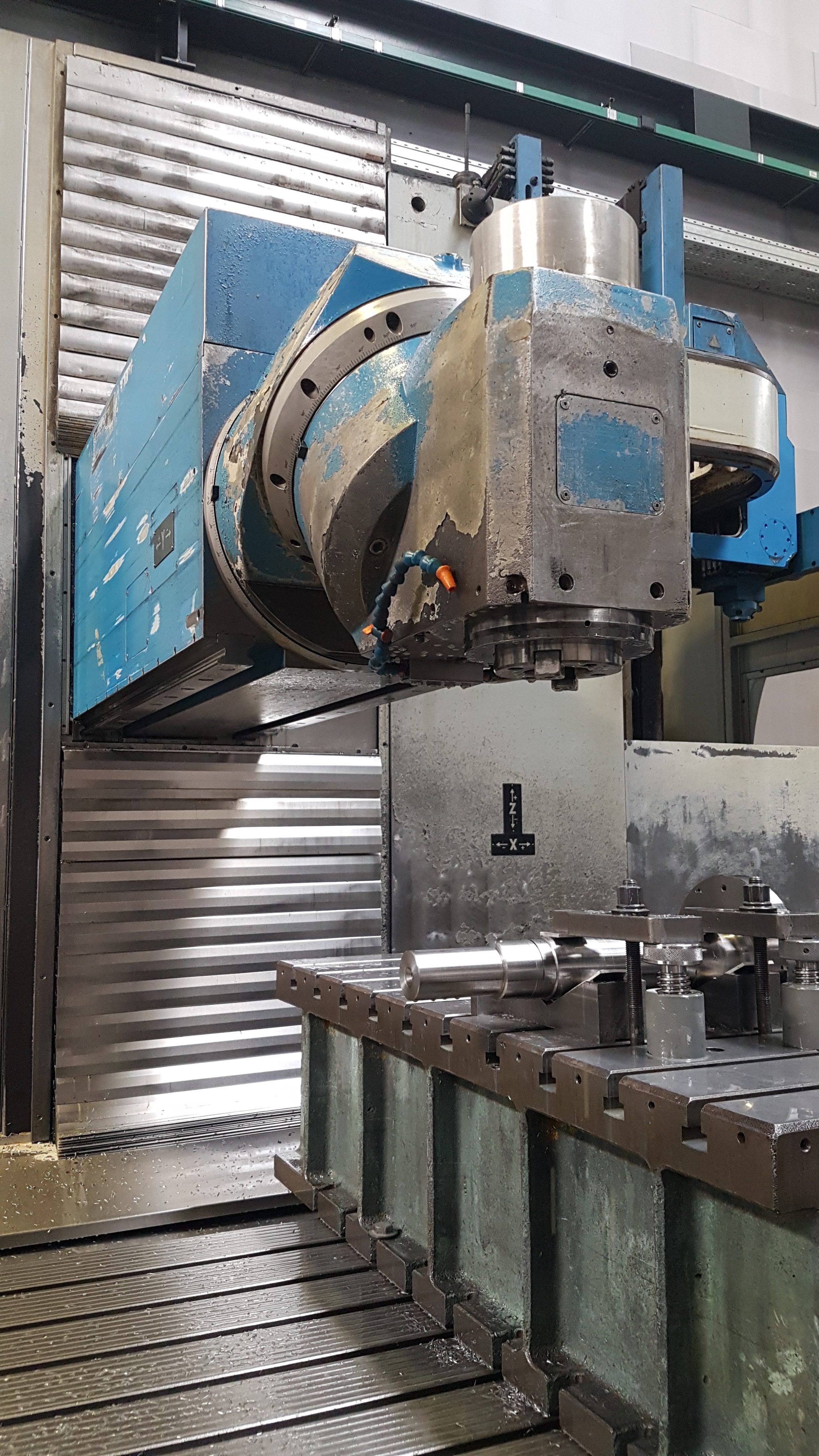

Automatic indexing universal milling head	1° x 2,5 °
The universal heads are made by the well-known spanisch Company CME itself
Cooling through the spindle / IKZ
Universal head recording	ISO 50
Spindle speed	3000 U/min
Automatic spindle positioning
Tool changer (chain magazine) with	40 Plätzen
Total motor power (main engine)	22 kW
Machine weight approx.	46 t
Accessories:

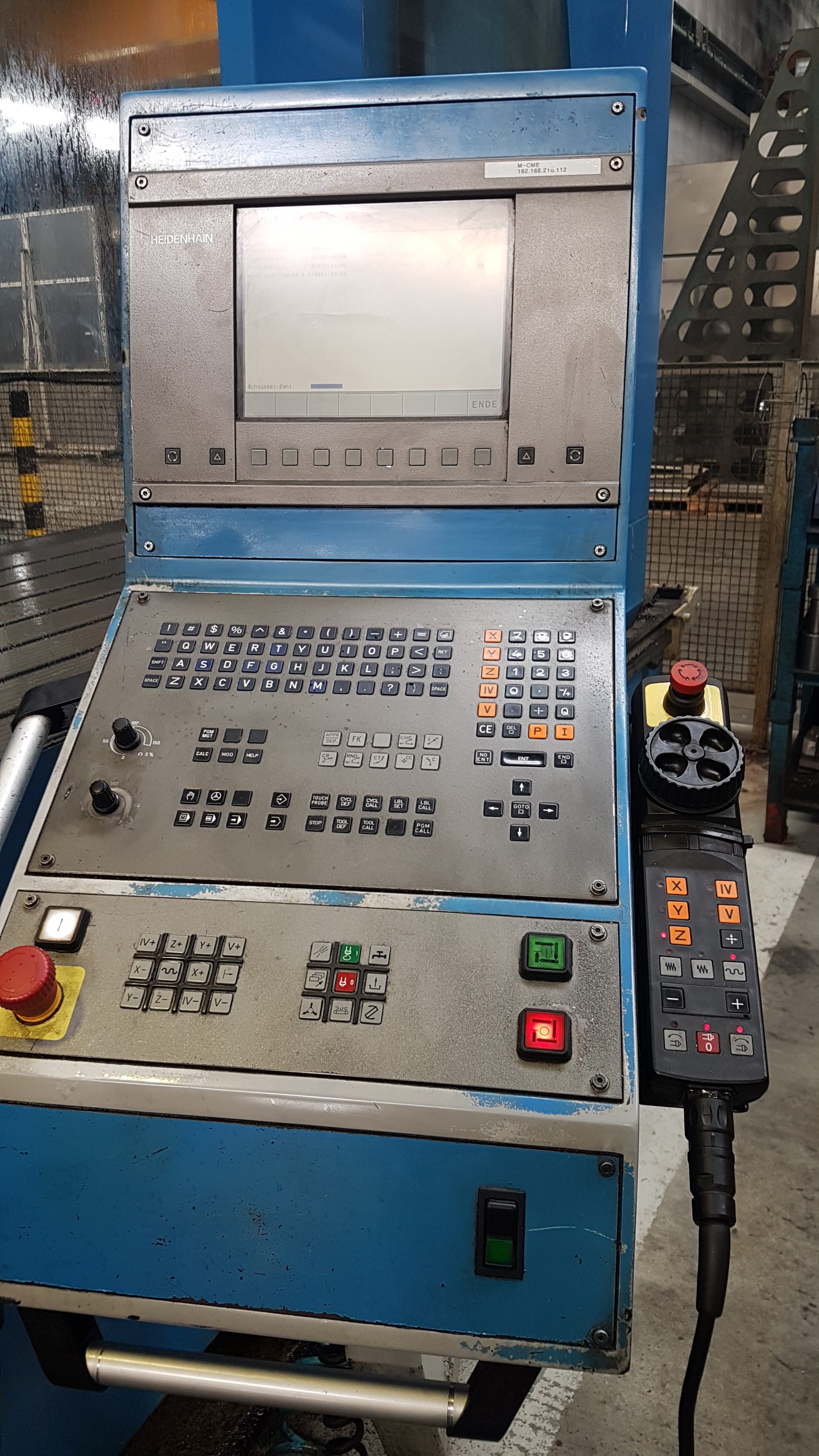

Portable electronic handwheel: Heidenhain
HR-410Full housing (open at the top) – CE2
Chip conveyor (in longitudinal direction)
Tool Measurement: Renishaw MI-18
Ethernet port
Coolant tank: 1000 l, with Transfer device
Pump: 20 bar
Cooling of the electrical cabinet by forced ventilation
Documentation
CE-declaration of conformity
Changes and errors in the technical details and the information reserved.
